Quick Comparison
- Boring Machine: Features an extendable Quill (W-axis). Best for deep holes, heavy cuts, and reaching into cavities on massive parts.
- Horizontal Machining Center (HMC): Features high-speed spindles and fast Automatic Tool Changers (ATC). Best for high-volume production and removing material quickly.
- The Rule of Thumb: If you need to reach deep inside a part, choose a Boring Machine. If you need to machine the outside fast, choose an HMC.
Introduction
Both Boring Machines (specifically Horizontal Boring Mills) and Horizontal Machining Centers (HMCs) are heavyweights in metal processing. They both utilize horizontal spindles and are ideal for box-shaped parts.
However, saying they are the same is a logical error. The distinction isn't just about orientation—it's about Reach vs. Speed.
1. The Boring Machine: The "Deep Reach" Expert. The defining feature of a boring machine is the Quill (W-axis). Unlike a machining center, a boring machine's spindle can physically extend out of the headstock.
- Core Function: The extended spindle acts like a rigid arm, allowing the tool to reach deep into a workpiece without using a dangerously long tool holder.
Best For:
- Strict straightness and roundness requirements for deep bores.
- Massive workpieces (energy, shipbuilding) where the part stays still, and the machine moves.
- Heavy-duty facing and threading.
2. The Horizontal Machining Center (HMC): The "Production" Beast. The HMC is designed for agility and automation. While it lacks the extendable W-axis, it compensates with speed and integration.
- Core Function: Combines Milling, Drilling, and Tapping with high-speed tool changes.
Key Features:
- Automatic Pallet Changer (APC): Load part B while part A is machining.
- High RPM: Spindles designed for fast material removal rates, not just low-speed torque.
- Rigidity: Fixed spindle overhang minimizes vibration during high-speed cuts.
Conclusion: How to Choose?
- Choose a Boring Machine if your priority is precision in deep holes and handling oversized parts that require the spindle to "reach in."

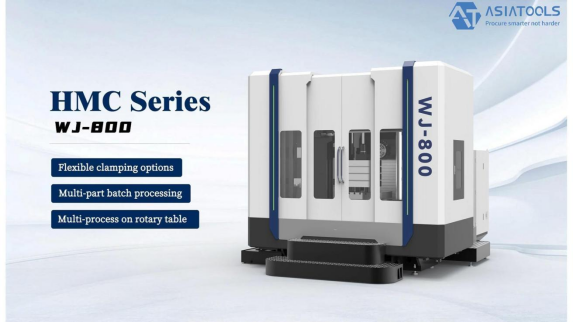

- Choose a Horizontal Machining Center (like the ASIATOOLS WJ-Series) if your priority is efficiency, chip removal, and cycle time for batch production of complex box parts.
