Why Pre-Squared Mold Blocks Reduce VMC Finishing Time | Duplex Milling Machine, Stock Allowance, Less Rework

Pre-squared blocks — duplex-milled flat and square — reduce finishing allowance from 1.5–2.0mm to 0.3–0.5mm. VMC finishing time drops 40–60% and rework rates fall from 3–5% to under 1%.

Pre-Squared Basics

What It Means

The term "pre-squared" describes a steel blank that has been precision-machined on a dedicated duplex milling machine during its rough machining stage. The defining characteristic is a pair of flat, parallel reference faces that serve as the geometric foundation for all subsequent machining operations. In the mold steel supply chain, pre-squared blocks sit in the "precision blanks" category — one step above as-machined raw stock and one step below fully finished machined parts. I visited a mold steel distributor in Dongguan and randomly measured 10 pieces of P20 steel labeled as precision blanks. Only 3 of the 10 had face parallelism within the 0.02mm/500mm tolerance; the remaining 7 ranged from 0.04–0.08mm. This gap between label and reality is why purchase contracts must specify exact tolerances — "precision blank" alone is not a guarantee. Acceptance testing with a CMM is the definitive check; for quick in-house verification, a dial indicator and straight edge will reveal whether the block meets the tolerance before it reaches the VMC.

Why It Matters

The journey from raw steel to finished mold component passes through three stages: rough machining, semi-finishing, and finishing. Roughing removes 80–85% of total stock, semi-finishing reaches 95–98%, and finishing completes the final 2–5% to achieve final dimensions and surface quality. Pre-squared blocks reshape the roughing stage itself, establishing a geometric baseline that finishing can trust. Without pre-squared blanks, the parallel and perpendicular tolerances of the as-delivered stock can be wildly out of specification, forcing finishing operators to take deeper cuts to chase dimensions — which accelerates tool wear and destabilizes surface quality. The table below shows measured finishing-stage performance for the same mold base component machined from ordinary versus pre-squared blanks:

The data is consistent across multiple shops I have visited: reducing finishing allowance from 1.5–3.0mm to 0.3–0.5mm cuts finishing tool engagement by 70–85%, which translates directly to shorter VMC cycle time. For a 200×150×100mm mold base, finishing time drops from 25–35 minutes to 10–18 minutes. At 200 parts per month, that is 50–60 hours of monthly VMC time recovered — without purchasing additional equipment.

Common Applications

Pre-squared blocks are a recommended option in general precision mold making and a necessary choice in the following scenarios:

· Precision plastic molds: optical lens molds, medical device molds, and cosmetic packaging molds require cavity dimensional tolerances of ±0.01–0.03mm and surface finish Ra ≤0.4μm. Pre-squared blanks are the baseline condition that makes these tolerances achievable and repeatable

· High-volume automation molds: automotive connector molds and electronic component molds targeting 500,000+ shot life demand uniform internal stress distribution in the block — a property directly improved by the stress-relief treatment that precedes duplex milling

· Multi-cavity molds: molds with four or more cavities require cavity-position tolerances of ±0.02–0.05mm. Pre-squared blanks ensure every cavity shares the same reference datum, preventing cumulative error across cavities

· Precision stamping dies: motor core dies and lamination dies with punch-to-die clearance tolerances of 0.01–0.03mm depend entirely on the flatness and perpendicularity of the block's main faces — parameters that pre-squared blanks guarantee at supply

For large automotive panel dies exceeding 500×500mm in machined area, pre-squared blocks are especially valuable. A large steel block delivered as ordinary raw stock requires extensive manual fitting before finishing can even begin, work that is both time-consuming and inconsistent. Pre-squared blanks eliminate this preparatory labor and provide uniform stock distribution across the entire machined surface.

Faster VMC Work

Less Material Removal

The finishing stage exists to achieve final dimensions and surface quality at minimum cost. Pre-squared blocks optimize the starting conditions so this goal is reached with the least possible tool engagement. Ordinary blanks require multiple layered finishing passes because the 1.5–3.0mm allowance cannot be removed in a single pass. Pre-squared blocks at 0.3–0.5mm allowance can typically be finished in one clean pass, eliminating wasteful air-cutting moves between layers. I toured a precision connector mold shop in Suzhou that switched to pre-squared blocks for their P20 mold base production. Their average finishing time dropped from 32 minutes per part to 14 minutes — a 56% reduction. The pre-squared blanks added approximately ¥25–35 per part in material cost, but the combined savings in VMC time and reduced tool consumption yielded a net cost reduction of roughly ¥18 per part.

The 0.3–0.5mm finishing allowance on pre-squared blocks is derived from engineering analysis of P20/H13/718 mold steels: accounting for post-roughing surface hardness variation (±15–20HV), heat treatment distortion (0.05–0.15mm/500mm), and VMC positioning accuracy (±0.01–0.02mm), 0.3mm is the safety floor and 0.5mm provides adequate tolerance margin. For blocks over 400mm in width or with severe post-roughing distortion, increase allowance to 0.8–1.0mm — this adjustment must be communicated to the supplier at order placement.

Stable Clamping

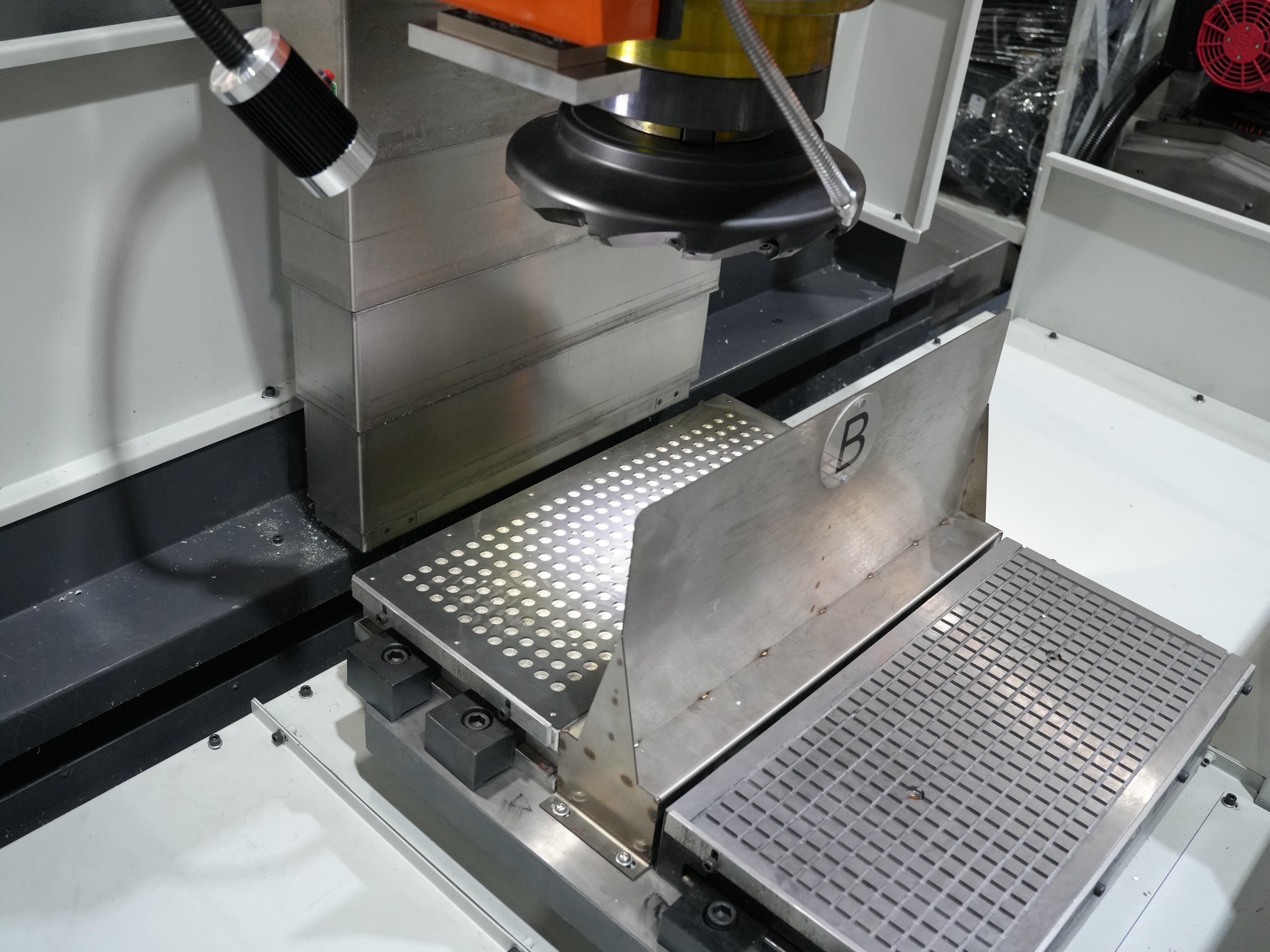

Finishing clamping requires the workpiece to remain stationary under cutting forces without deflection or elastic deformation. Pre-squared blocks with face parallelism of ≤0.02mm/500mm can be mounted directly on a magnetic chuck or precision vise — no shim adjustment or dial indicator leveling is needed. This seemingly minor operational simplification eliminates the largest source of setup error in the finishing stage. I observed the clamping process for both blank types at a mold shop. With non pre-squared blanks, the magnetic chuck was energized and a dial indicator revealed runout; shim adjustment required 3–5 iterations over 15–20 minutes to bring runout below 0.05mm. With pre-squared blocks, the magnetic chuck was energized and runout was already within 0.01–0.02mm — total leveling time: 2–3 minutes.

Even though finishing cutting forces are much lower than roughing forces, a high-precision cavity or template surface tolerates no instability. Vibration marks and out-of-tolerance dimensions appear almost immediately when the workpiece shifts under cutting load. The flat reference face of a pre-squared block removes the uncertainty from clamping, which is the foundational guarantee for finishing quality consistency.

Shorter Cycle Time

Finishing cycle time is the sum of multiple sub-operations: load, level, clamp, set first cut, actual machining, tool change, inspect, unload. Pre-squared blocks improve efficiency across every sub-operation, with the most dramatic gains in leveling time and cutting time combined.

1. Load and inspect: immediately verify that stock deviation is within the 0.3–0.5mm allowance range — no full dimensional inspection needed (saves 5–8 min/part)

2. Face leveling: reduced from 15–20 minutes to 2–3 minutes (saves 12–17 min/part)

3. Actual cutting: 70–85% less material to remove translates directly to shorter cutting time (saves 8–15 min/part)

4. Tool changes: lower tool wear reduces change frequency — approximately one fewer tool change per 10 parts (saves ~5 min per change avoided)

5. Batch running: first-off inspection confirms dimensions; subsequent parts in the batch run without per-part inspection (saves 3–5 min/part for batch sizes of 10–20 pieces)

For a 200×150×100mm mold base, total finishing cycle drops from 35–45 minutes to 15–20 minutes. At 200 parts per month, that is 70–80 hours of monthly cycle time recovered — equivalent to 9–10 additional production shifts per month without any new equipment purchase.

Reducing Rework

Better Squareness

Mold template perpendicularity determines assembly fit quality between mating components. Pre-squared blocks hold all-side perpendicularity at ≤0.03mm/300mm, providing a reliable reference for template finishing. Ordinary raw stock perpendicularity typically runs 0.1–0.2mm/300mm — errors 3–6 times larger than pre-squared blocks. Switching to pre-squared blocks reduces this error by 70–80%, eliminating the root cause of rework triggered by out-of-spec squareness.

· Template A-face to B-face perpendicularity: pre-squared blocks guarantee ≤0.03mm/300mm; finishing reliably achieves ±0.01mm

· Template reference edge to mounting face: ≤0.02mm/300mm, meeting precision mold assembly requirements

· Cavity wall to parting plane: ≤0.02mm/100mm, the controlling tolerance for precision plastic molds

I encountered a recurring rework problem at an electric motor bracket mold shop: template perpendicularity was running 0.06mm over tolerance after finishing, requiring 3 hours of re-machining per affected plate. Root cause investigation revealed the incoming blank perpendicularity was only 0.12mm/300mm — four times the pre-squared block specification. After switching to pre-squared blanks, this rework category disappeared entirely. Roughing baseline quality determines finishing quality ceiling — this principle is absolute in mold manufacturing.

Consistent Allowance

Stable finishing quality requires uniform stock distribution across the entire machined surface. Pre-squared blocks at ≤0.02mm/500mm parallelism mean that cutting depth variation across the workpiece stays within 0.02mm, producing uniform cutting loads, consistent tool wear, and predictable surface quality. Ordinary blanks at 0.05–0.15mm/500mm parallelism can produce local cutting depth differences of 2–3 times the nominal value, creating tool overload zones that generate vibration marks and dimensional variation.

The core value of uniform allowance on pre-squared blocks is not the average allowance value but the ratio of maximum to minimum allowance. When this ratio is held to 1.5 or below (0.5mm:0.3mm ≈ 1.67), the VMC can execute a stable single finishing pass. Higher ratios produce unstable cutting dynamics that degrade surface quality and accelerate tool wear.

Allowance uniformity matters most for pre-hardened mold steels like P20 and 718, where post-roughing surface hardness can vary by ±15–20HV across the block. Non-uniform allowance means some regions encounter harder material at higher cutting loads, accelerating tool wear and producing vibration marks that are difficult to eliminate. Pre-squared blanks hold this risk to a minimum.

Fewer Corrections

Finishing corrections fall into three categories: dimensional corrections, geometric corrections, and surface quality corrections. Dimensional corrections are the most frequent type, usually caused by inaccurate allowance estimation or a mismatch between nominal and actual blank dimensions. Pre-squared blocks carry documented, verifiable allowance and parallelism specifications that make dimensional surprises rare.

1. First-off inspection: when the first part measures in-tolerance, subsequent parts in the batch run without per-part inspection. For 200 parts per month, this reduces required inspections from 200 to approximately 20 — saving 30–40 minutes of inspection labor monthly

2. Geometric corrections: perpendicularity and parallelism are guaranteed at the blank stage, so finishing only needs to manage dimensional accuracy, eliminating whole-plate rework from baseline out-of-tolerance conditions

3. Surface vibration mark corrections: uniform allowance and stable clamping reduce the probability of vibration marks by over 80%, nearly eliminating this correction category

4. Stress distortion corrections: pre-squared blocks receive adequate stress-relief treatment before delivery, so post-roughing residual stress is largely released. Post-finishing distortion stays within 0.01–0.02mm/200mm

Switching to pre-squared blocks reduces finishing rework rate from 3–5% to 0.5–1.0%. At 200 parts per month, this eliminates 4–9 rework events monthly. At an average of 4 hours per rework, that is 16–36 hours of monthly rework labor saved — not counting the mold delivery delays that rework inevitably causes.

Three numbers: 40–60% less VMC finishing time, rework from 3–5% to under 1%, and 15–22% cost reduction. Specify pre-squared blocks with parallelism ≤0.02mm/500mm and perpendicularity ≤0.03mm/300mm in the purchase contract.
