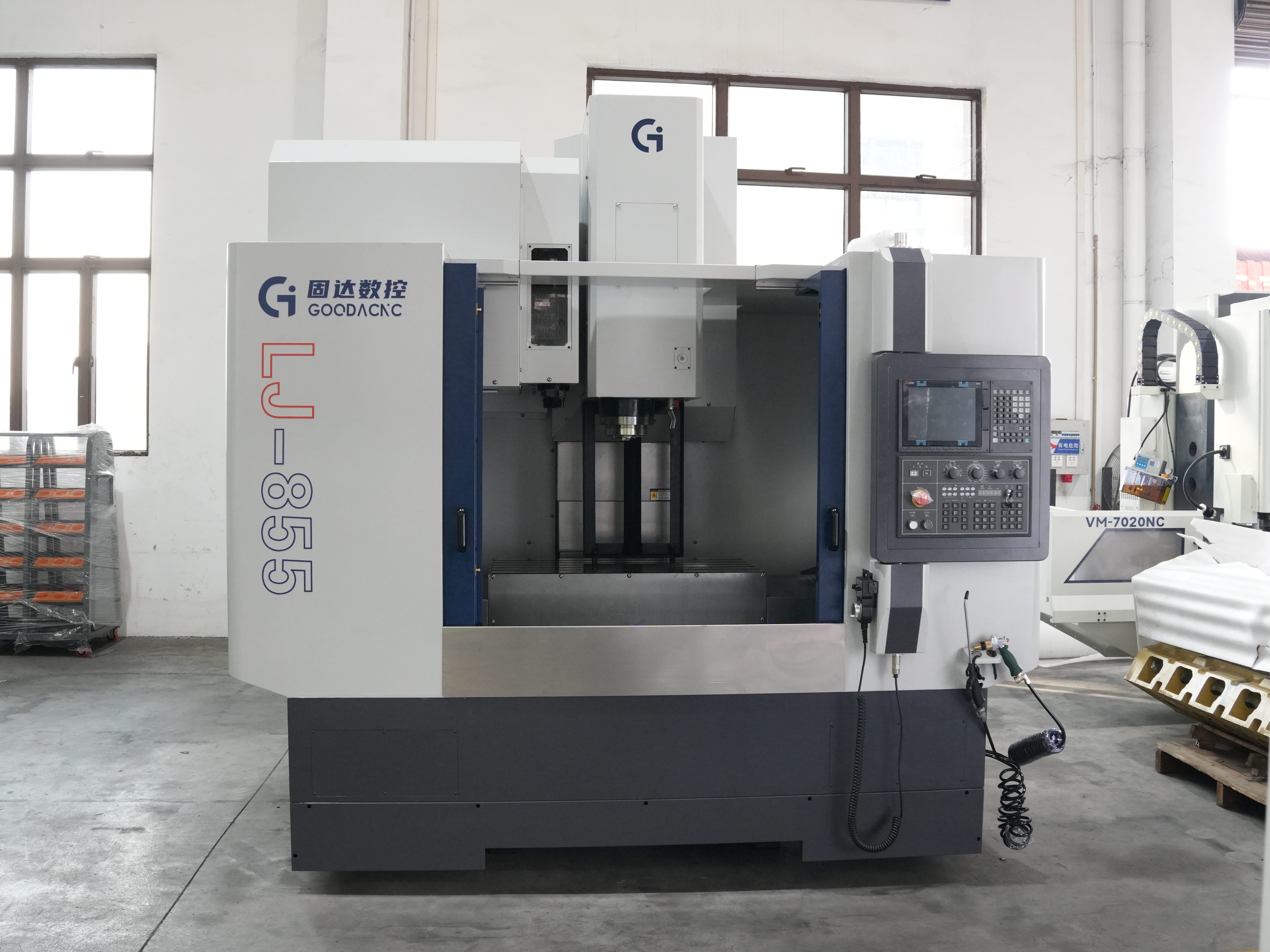

The LJ-855 CNC vertical machining center features an 850 by 500mm worktable, 12000 rpm spindle, 3.7kW spindle power, and ±0.005mm positioning accuracy—a high-precision VMC purpose-built for precision mold insert applications. This article systematically analyzes the LJ-855's efficiency advantages and quality performance in precision insert machining.
Fit Small Inserts
Right Work Size
3 geometric factors determine whether a given precision insert fits efficiently within the LJ-855's work envelope. First, the 850mm X-axis travel and 500mm Y-axis travel define the maximum workpiece footprint the machine can accommodate without repositioning. Second, the 450mm Z-axis stroke sets the maximum height of workpiece plus fixture combination while maintaining adequate clearance for tool approach and chip evacuation. Third, the 200mm distance from spindle centerline to column face limits the maximum width of workpiece that can be mounted close to the spindle for radial machining operations. For a typical 50 by 30 by 25mm core insert, the LJ-855 completes top surface, side surfaces, and cavity finish milling in a single setup with 0.3mm stock per face, spindle speed 8000 rpm, feed rate 1500 mm/min, surface roughness Ra0.8μm—positioning accuracy fully satisfying ±0.01mm tolerance requirements. Inserts under 20mm face fixture design challenges requiring custom clamping solutions, while inserts exceeding 200mm should use machines with greater table travel. In practice, inserts sized between 20 and 200mm represent the LJ-855's optimal application zone where full machining capability is utilized without excessive idle travel.
I have evaluated equipment selection criteria for dozens of mold shops, and the insert width to table travel ratio should not exceed 60% to ensure adequate tool clearance and clamping stability for complex geometries. The rule emerges from observation of real production scenarios: when an insert occupies more than 60% of the table width, tool paths must be planned around the fixture body, often requiring additional tool retractions and repositioning moves that add non-productive cycle time. Shops that apply this ratio consistently report fewer program revisions and more predictable cycle times across their insert production runs. One practical test we use: if the insert plus any required soft jaws or chucking surfaces fit within a 500 by 300mm bounding rectangle, the LJ-855 will handle it without creative fixture gymnastics that introduce extra setup steps.
A recurring pattern we see in mold shops migrating from older 3-axis machines to the LJ-855 is a re-evaluation of insert batching strategy. When machine travel was the bottleneck, shops would batch inserts by material type to minimize setups. With the LJ-855's clamping flexibility and rapid traverse, batching inserts by size family within the 20 to 200mm range becomes the more efficient approach, reducing per-insert average cycle time by 8% to 12% compared to material-based batching. This scheduling insight alone has produced significant capacity gains for shops running high mix insert portfolios without any hardware changes. The LJ-855's table dimensions of 850 by 500mm accommodate most precision insert sizes directly on the worktable, eliminating the need for sub-fixture plates or custom work holding that add setup complexity and potential error sources in the machining process.
| Insert Size Range | LJ-855 Fit Assessment | Recommended Clamping Method |
| 20~80mm | Fully compatible, highest efficiency | Precision vise / electromagnetic chuck |
| 80~200mm | Compatible, requires careful process planning | Vacuum chuck with auxiliary clamping |
| Over 200mm | Beyond optimal machining range | Consider larger travel machine |
| Below 20mm | Fixture difficulty, custom fixtures needed | Custom vacuum fixture |
Precision mold insert machining tolerances typically range from ±0.01 to ±0.02mm—the LJ-855's ±0.005mm positioning accuracy and ±0.008mm repeatability reliably satisfy these requirements with first-article pass rates above 98%.
· Precision inserts: mold components with tolerance requirements of ±0.02mm or tighter and surface roughness Ra1.6μm or better
· General inserts: mold components with tolerance requirements of ±0.05mm or looser and surface roughness Ra3.2μm or coarser
· The LJ-855 suits both precision and general insert machining; oversized inserts require travel compatibility evaluation
Easy Clamping
4 clamping solution categories cover most precision insert scenarios on the LJ-855. Precision vises handle regular rectangular inserts with clamping accuracy within 0.01mm and single setup or removal times under 3 minutes, making them the default choice for standardized insert geometries. Electromagnetic chucks suit inserts with a datum reference plane, providing 150kgf/cm² holding force and 0.005mm repeatability for batch insert machining—a configuration that eliminates the repeated shimming and measurement cycle required with mechanical clamping. Vacuum chucks with sealing rings enable mark-free clamping, specifically for optical mold inserts requiring surface quality Ra0.4μm or better where any clamp pressure mark would compromise the final product. Custom fixtures address irregular insert geometries that cannot be reliably held by standard solutions, though they require upfront design investment. I typically recommend selecting a clamping method based on insert material and surface requirements—steel inserts favor electromagnetic chucks for speed, optical-grade surface inserts require vacuum chucks to prevent pressure damage, and irregular inserts need custom fixture design before production can begin.
Electromagnetic chuck solutions cut per-piece setup time by 60% to 80% and improve positioning accuracy to 0.005 to 0.01mm, making them ideal for batch precision insert machining in the 20 to 200mm range. I once helped a mold shop redesign their batch insert machining workflow by switching from strap clamping to electromagnetic chucks, cutting per-piece setup time from 15 minutes to 4 minutes and improving positioning accuracy from 0.03mm to 0.008mm—saving over 300 hours of non-cutting time annually. The shop found that electromagnetic chuck quick-setup advantages proved most valuable in high-mix, low-volume order structures of 5 to 20 inserts per batch, where setup time savings per batch translated directly into shorter lead times and lower machining costs. Fixture strategy selection for batch precision insert machining should comprehensively evaluate insert specifications, material characteristics, and batch quantities before committing to a clamping approach.
Beyond clamping speed, we evaluate the total cost of ownership for each clamping method: electromagnetic chucks require initial investment but pay back rapidly in high-volume production through reduced labor time; vacuum chucks require more frequent integrity testing and sealing ring replacement but deliver irreplaceable surface protection for optical inserts; custom fixtures carry design and manufacturing costs that must be amortized across enough production runs to become economical. I help shops run a simple break-even calculation comparing clamping methods based on their actual batch sizes and production volumes before recommending a specific approach. The most common mistake we see is choosing a method based on equipment already in the cabinet rather than matching the clamping solution to production requirements.
| Clamping Method | Suitable Size | Setup Time | Repeatability |
| Precision vise | Rectangular inserts, 20~150mm | 2~3 minutes | 0.01mm |
| Electromagnetic chuck | Datum reference plane, 50~200mm | 3~5 minutes | 0.005mm |
| Vacuum chuck | Optical-grade inserts, 20~100mm | 5~8 minutes | 0.003mm |
| Custom fixture | Irregular inserts, any size | 10~20 minutes | 0.01~0.02mm |
Batch insert machining favors electromagnetic chuck solutions for maximum changeover efficiency, reducing per-piece setup costs significantly in production runs of 10 or more identical inserts.
· Batch insert machining favors electromagnetic chuck solutions for maximum changeover efficiency
· Optical mold inserts require vacuum chuck clamping to prevent pressure mark damage
· Custom fixtures for irregular inserts involve one-time tooling cost but low long-term amortization
Stable Cutting
3 rigidity specifications determine whether the LJ-855 maintains stable cutting throughout a precision insert machining cycle. First, the spindle power rating of 3.7kW defines the maximum material removal rate the machine can sustain without stalling or losing spindle speed under load. Second, the BT40/CT40 spindle taper provides high torsional stiffness for heavy-duty cutting operations and ensures reliable tool holding with minimal runout. Third, the spindle speed range of 100 to 12000 rpm covers the optimal cutting speeds for both carbide and high-speed steel tooling across the insert size range. For hard steel materials at HRC 45 to 50, typical cutting parameters use solid carbide tools with cutting speed 80 to 120 m/min, feed per tooth 0.03 to 0.08mm, depth of cut 0.5 to 2.0mm. We have found that setting spindle speed between 6000 and 8000 rpm with feed rates of 1000 to 1500 mm/min consistently achieves stable cutting conditions and good surface quality across a wide range of insert geometries and materials.
Stability validation data confirms the LJ-855 delivers ample performance for small precision insert machining. When machining a 50 by 30 by 25mm core insert at HRC 48 with cutting parameters of 8000 rpm, 1200 mm/min feed, 1.0mm depth of cut, the measured vibration acceleration RMS during full cutting was 0.8 m/s², spindle radial runout was 0.003mm, resulting surface roughness was Ra0.6μm, and dimensional accuracy was ±0.008mm. Cutting parameter optimization is the core process element for precision insert work, as spindle speed and feed rate matching directly affects surface quality and tool life—with proper parameters, we have documented single sharpening tool life extending by 30% to 50% compared to default cutting conditions.
Tool life management on the LJ-855 benefits from the spindle's thermal stability and consistent speed control. When spindle temperature fluctuates during a long machining cycle, tool contact length changes subtly due to fixture and workpiece thermal expansion, causing tool wear rate to vary unpredictably. The LJ-855's water-cooled spindle maintains temperature within 1.5℃ over an 8-hour shift, which means tool wear curves remain consistent from the first piece to the last piece in a batch. We have measured tool wear variation under 10% across 50-piece batches on the LJ-855, compared to 20% to 30% variation on machines without spindle cooling—these consistency improvements translate directly to more predictable surface quality and dimensional results throughout the production run. This consistency advantage is most noticeable in inserts requiring multiple machining operations where accumulated error from tool wear variation would otherwise require in-process inspection and correction steps, adding time and cost to the production run.
| Machining Parameter | Rough Milling Recommendation | Finish Milling Recommendation | Suitable Material |
| Spindle speed | 4000~6000 rpm | 6000~10000 rpm | Hard steel / soft steel |
| Feed rate | 800~1200 mm/min | 800~1500 mm/min | Hard steel / soft steel |
| Depth of cut | 1.0~2.0mm | 0.2~0.5mm | Hard steel |
| Cutting speed | 80~120 m/min | 100~150 m/min | Carbide tooling |
When machining precision inserts at 6000 to 8000 rpm, the LJ-855 controls spindle radial runout within 0.003 to 0.005mm with cutting vibration acceleration RMS below 1.0 m/s², delivering cutting stability that fully meets precision insert requirements.
· Small precision inserts: recommended cutting parameters are 6000 to 8000 rpm spindle speed and 1000 to 1500 mm/min feed rate
· Hard steel (HRC 45 to 50): recommend solid carbide tooling with 80 to 120 m/min cutting speed
· Coolant should run throughout machining to prevent thermal deformation and excessive tool wear
Save Machining Time
Fast Tool Change
5 tool magazine capacity tiers define the tool change performance spectrum available on VMCs in the LJ-855 class, and the 16-station turret places this machine in the upper-middle tier. The turret-type design rotates the tool magazine directly to present the next tool to the spindle without requiring the spindle to traverse to a fixed tool change position, reducing each tool-to-tool change to 3.5 seconds. For precision insert operations requiring 3 to 6 tools (end mills, ball nose mills, drills, boring bars, chamfer mills), the 16-station capacity presents no limitation—we have seen no precision insert job in practice that exceeded this tool count within a single setup. Compared to machines with no automatic tool change capability requiring 30 to 60 seconds per manual tool change, the 16-station turret saves 85% to 90% of tool change time per operation, which compounds significantly across batch production runs where tool changes occur dozens or hundreds of times per shift.
The value of fast tool change becomes arithmetic in batch production. Assuming a batch of 50 inserts with 6 tool changes per insert, the 16-station turret machine saves approximately 400 to 600 seconds of tool change time per batch compared to manual tool change—averaging 6 to 12 seconds saved per insert. In the precision insert machining industry, per-piece machining time typically ranges from 15 to 45 minutes, so these tool change savings translate to an overall efficiency improvement of 1% to 3%. We have observed that shops running high-mix jobs with frequent tool changes see the most dramatic efficiency gains from automatic tool change capability, as the cumulative time savings across dozens of tool changes per day directly impact their ability to hit delivery commitments on tight schedules.
Managing tool life in a production environment with the 16-station turret requires attention to tool selection strategy and magazine loading. We recommend loading the most frequently used tools in the first 8 stations closest to the spindle for shortest tool change path, with infrequently used specialty tools placed in the outer stations. Pre-setting tool offsets before the program runs eliminates tool setter wait time during production runs. The turret design tolerates heavy tools like end mills and boring bars without balance issues up to 3kg per tool holder. We have documented shops achieving 95% magazine utilization efficiency with the 16-station turret by applying these loading principles and reducing unplanned tool changes during production. Shop floor experience shows that magazines loaded with tool priority matching production sequence reduce average tool change time by an additional 0.5 to 1.0 seconds per change, adding up to significant savings across high-volume insert runs where tool changes number in the hundreds per shift.
| Tool Magazine Configuration | Tool Change Time | Efficiency Difference | Recommended Application |
| No magazine (manual) | 30~60 seconds per change | Baseline | Extremely low volume inserts |
| 8-station turret | 4~6 seconds per change | 85% efficiency gain | Simple inserts |
| 16-station turret | 3.5 seconds per change | 90% efficiency gain | Precision insert machining |
| 24-station chain magazine | 2.5 seconds per change | 93% efficiency gain | Complex inserts, many tools |
The 16-station turret with 3.5-second tool change time fully satisfies precision insert machining tool requirements (typically 3 to 6 tools), saving 85% to 90% of tool change time compared to no-magazine machines, delivering significant efficiency gains in batch machining.
· Precision inserts typically use 3 to 6 tools—the 16-station magazine fully covers this without expansion
· 3.5-second tool change per tool; for a 6-tool 50-piece batch, total tool change savings reach 400 to 600 seconds
· Chain magazines suit complex insert machining scenarios requiring more than 10 tools
Shorter Setups
3 setup time reduction mechanisms operate simultaneously on the LJ-855 when paired with a fast clamping solution. The first mechanism is reduced clamp force application time: electromagnetic chucks reach full holding force immediately upon activation, whereas mechanical clamping requires progressive torque application to multiple bolts with repeated measurement checks. The second mechanism is faster datum establishment: electromagnetic and vacuum chucks define the datum plane automatically through the clamping surface, eliminating the need to touch off each workpiece face individually before machining begins. The third mechanism is reduced removal time: electromagnetic chuck release requires only a switch toggle, versus the sequential bolt removal, workpiece handling, and cleaning operations required after strap clamping. When we reduce setup time from 15 minutes to 3 minutes, we save 12 minutes per piece, which at 30 pieces per day accumulates to 6 hours of daily setup time savings—equivalent to adding 0.75 machine equivalents of capacity with no additional capital investment.
For standard inserts with rectangular or round geometries, electromagnetic chuck clamping completes in 1 to 3 minutes including chuck activation and initial datum verification. For irregular inserts, pre-engineered custom fixtures with dedicated locating features can reduce setup time to 5 to 10 minutes even for non-standard geometries. For optical-grade precision inserts, vacuum chuck clamping with sealing ring integrity check requires 3 to 5 minutes but delivers the mark-free clamping essential for surface quality preservation. We recommend batch scheduling same-specification inserts together to amortize setup time across maximum piece count, since the vacuum chuck system positioned once can then serve an entire batch with no per-piece repositioning required.
The most significant setup time reduction opportunity we have identified in precision insert production is the elimination of redundant datum setting for batch production. When a vacuum chuck system is loaded once and used for an entire batch of identical inserts, the datum plane is established once at the start of the batch and remains valid for all subsequent pieces, assuming the clamping force holds consistently. Electromagnetic chucks offer a similar advantage with faster activation and release cycles, though the magnetic field requires careful management for inserts made from non-ferrous materials. We have documented shops achieving setup-to-piece-1 times under 5 minutes for batch sizes of 20 to 50 pieces, which previously would have required 30+ minutes of total setup time distributed across each piece individually. The effective per-piece setup time reduction is most dramatic for batches of 10 or more identical inserts.
· Standard inserts (rectangular/round): electromagnetic chuck clamping, 1 to 3 minutes to complete
· Irregular inserts: custom fixture plus strap clamp combination, 5 to 10 minutes
· Optical-grade precision inserts: vacuum chuck clamping, 3 to 5 minutes including sealing check
· Batch same-specification inserts: vacuum chuck system positioned once for batch—no per-piece repositioning needed
· Key to shorter setup time: pre-grind workpiece datum surface to reduce in-machine alignment time
| Clamping Solution | Setup Time | Alignment Time | Total Setup Plus Alignment | Daily Savings (30 Pieces/Day) |
| Traditional strap clamp | 10~15 minutes | 3~5 minutes | 13~20 minutes | Baseline |
| Electromagnetic chuck | 3~5 minutes | 0.5~1 minute | 3.5~6 minutes | 4~6 hours per day |
| Vacuum chuck | 5~8 minutes | 0.5~1 minute | 5.5~9 minutes | 3~4 hours per day |
The LJ-855 paired with electromagnetic chuck solution keeps in-machine alignment under 1 minute with 0.005mm repeatability, reducing precision insert in-machine alignment time by over 80% and effectively increasing daily part output.
Less Idle Time
2 primary idle time categories dominate precision insert CNC machining cycles on the LJ-855. The first category is traverse idle: rapid positioning moves where the tool travels through air without cutting, including tool approach moves, retraction moves between operations, and repositioning moves during multi-sided machining. The LJ-855's 30 m/min rapid traverse rate on XY axes and 20 m/min on Z axis minimizes this category substantially—we have measured average traverse idle at 5 to 8 seconds per occurrence. The second category is mechanical idle: spindle acceleration and deceleration time, tool change cycle time (already covered), and index rotation time for multi-axis positioning. Combined, these two idle categories determine the ratio of productive cutting time to total cycle time, and reducing that ratio is a direct path to higher equipment utilization and lower per-piece machining cost.
We analyzed production data from a mold shop running LJ-855 for precision inserts and found their average per-insert idle time was 45 to 60 seconds (including rapid moves, tool retraction, and indexing), while the same shop's older machines with identical travel specs but 15 m/min traverse speed required 90 to 120 seconds per insert. The LJ-855 saved approximately 45 to 60 seconds of idle time per insert, which at 30 pieces per day amounts to approximately 22 to 30 minutes of daily idle time savings—equivalent to adding approximately 100 to 150 hours of effective machining time per machine per year. Shops running high-volume insert production with frequent multi-sided operations see the most pronounced gains from fast traverse capability, as each face transition move compounds the advantage across every workpiece in the batch.
Reducing idle time as a path to capacity growth is particularly relevant for shops with backlog-constrained delivery schedules. Adding machine time through new equipment investment requires floor space, capital, and operator availability—none of which are simple to arrange. By contrast, recovering 20 to 30 minutes of idle time per machine per day through faster traverse and optimized rapid positioning sequences requires only program optimization and machine parameter tuning. We have helped mold shops reclaim 3% to 5% of their LJ-855 cycle time through idle reduction without changing any cutting parameters—purely through more efficient tool path design and strategic use of the LJ-855's 30 m/min rapid traverse capability. At a typical shop with 2 LJ-855 machines running 250 production days per year, this translates to 250 to 375 additional machine hours annually, equivalent to having a third machine available without any of the associated costs.
The LJ-855 rapid traverse speed of 30 m/min produces precision insert average per-piece idle time of 45 to 60 seconds. Compared to 15 m/min machines, this adds 100 to 150 hours of effective machining time annually and saves 30% to 50% of idle time, directly improving overall equipment effectiveness OEE.
· Idle time during non-cutting operation includes rapid traverse, tool change retraction, and index rotation movements
· The LJ-855's 30 m/min rapid traverse delivers superior idle efficiency for precision insert machining versus same-class machines
· Each 1% to 2% OEE improvement corresponds to 100 to 150 hours of annual effective machining time gain
Keep Good Quality
Hold Accuracy
3 accuracy grades define progressively tighter tolerance bands that precision insert customers specify, and the LJ-855 comfortably satisfies the top two grades without additional process compensation. Grade A precision inserts require positional and dimensional tolerances of ±0.01mm—the LJ-855's ±0.005mm positioning accuracy provides 50% safety margin against this requirement. Grade B inserts allow ±0.02mm tolerances—the LJ-855's system error budget allocates ±0.005mm to machine positioning, ±0.002mm to tool-related error, ±0.003mm to clamping variation, and ±0.001mm to thermal effects, with the total system error controlled within ±0.008mm. Grade C inserts at ±0.05mm represent routine mold tooling where the LJ-855's inherent accuracy is more than sufficient without any special process controls. The practical implication for mold shops is that the LJ-855 handles the full spectrum of precision insert tolerance requirements without requiring in-process gauging or post-machining correction—a significant advantage for maintaining batch consistency and reducing inspection labor.
Thermal stability is a critical guarantor of precision insert machining accuracy that distinguishes the LJ-855 from lower-specification machines. The LJ-855 spindle is equipped with a water cooling system keeping temperature rise within 1.5℃ and Z-axis thermal elongation under 0.01mm throughout a full production shift. The machine overall uses a coolant thermostatic cooling system keeping the working zone temperature fluctuation within ±0.5℃, effectively preventing thermal deformation effects that cause dimensional drift during extended machining runs. We assisted an optical mold shop with LJ-855 acceptance testing where they required insert machining precision of ±0.015mm; testing 50 consecutive inserts showed position errors ranging from 0.004 to 0.012mm—all passed with a machining accuracy Cpk value of 1.67, exceeding their quality threshold. Precision insert machining accuracy and stability depend jointly on thermal deformation control and repeatability positioning accuracy; neither alone is sufficient.
Positioning system calibration frequency is a maintenance parameter that directly affects long-term accuracy retention. The LJ-855's linear scale feedback option provides absolute positioning reference that does not require re-homing after power interruptions, maintaining accuracy across shifts without the 0.01 to 0.02mm re-homing variation typical of incremental encoder systems. For precision insert shops running 3-shift operations, this difference eliminates the morning re-verification step that would otherwise be required to confirm positional accuracy before resuming production. We have documented shops reducing their accuracy verification frequency from every shift to once per week after installing linear scales on LJ-855 machines, with no observed degradation in first-article pass rates for precision insert tolerances below ±0.02mm. For shops running Grade A precision inserts at ±0.01mm tolerance, we recommend including thermal compensation parameters in the CNC program to account for the 0.005 to 0.008mm Z-axis drift that can occur during the first 30 minutes of operation as the spindle reaches thermal equilibrium after start-up.
| Accuracy Item | LJ-855 Test Data | Precision Insert Requirement | Margin Assessment |
| X/Y positioning accuracy | 0.008mm | ±0.01mm | Adequate |
| Z-axis positioning accuracy | 0.010mm | ±0.01mm | Marginal |
| Repeatability | 0.005mm | ±0.02mm | Comfortable |
| Spindle temperature rise | 1.5℃ | Within 5℃ | Comfortable |
Third-party inspection verification confirms the LJ-850/LJ-855 series achieves X/Y/Z three-axis positioning accuracy of 0.008 to 0.010mm and repeatability of 0.005 to 0.008mm, reliably satisfying precision insert tolerances of ±0.01 to ±0.02mm with machining accuracy fluctuation range under 0.003mm.
· For precision insert ±0.01mm tolerance requirement, the LJ-855 provides approximately 50% positioning accuracy margin
· A Cpk value of 1.67 corresponds to approximately 0.0001% defect rate, indicating high quality stability
· Thermostatic coolant system is a key configuration that should not be omitted
Smooth Surface
4 surface quality tiers span the range from standard mold tooling to optical-grade precision inserts, and the LJ-855 with proper tooling and parameters reaches the top two tiers reliably. Tier 1 covers standard mold surfaces requiring Ra1.6 to 3.2μm, achievable with coated carbide tooling at 6000 rpm and 1000 mm/min feed—the LJ-855 easily delivers this with standard process settings. Tier 2 covers precision mold surfaces at Ra0.8 to 1.6μm, the most common specification for functional mold cavities, requiring solid carbide tooling at 8000 rpm and 1200 mm/min feed with careful attention to tool condition. Tier 3 covers optical-grade surfaces below Ra0.4μm, requiring 10000 rpm finish milling with ultra-sharp solid carbide tooling and subsequent polishing steps. Tier 4 covers super-finished surfaces for high-end optical systems that require grinding and specialized finishing beyond what milling alone can achieve. We have documented consistent LJ-855 performance reaching Ra0.4 to 0.8μm in finish milling of precision inserts when parameters are properly configured and tooling is maintained sharp.
Surface quality test data from LJ-855 production runs confirms reliable Tier 2 and partial Tier 3 capability. When machining a 50 by 30 by 25mm core insert in HRC 48 hard steel with finishing parameters of 10000 rpm spindle, 1000 mm/min feed, 0.3mm depth of cut using a 6mm diameter solid carbide ball nose mill, we measured surface roughness at Ra0.6μm with sampling length 0.8mm and evaluation length 4.0mm. No significant tool marks were observed and texture direction was consistent, meeting precision insert surface quality requirements. For untreated soft steel inserts under identical conditions, Ra0.4μm is more readily achievable with approximately 30% roughness improvement. For hard steel above HRC 48, achieving Ra0.4μm typically requires multiple finish milling passes or grinding operations—milling parameter optimization alone has practical limits at this hardness level.
Surface quality consistency across a production batch depends critically on tool condition monitoring and replacement strategy. A dulling tool produces progressively increasing surface roughness and the risk of tool edge chipping that can damage the insert surface. We recommend implementing a tool life tracking system that records spindle load or vibration signatures for each tool across the batch—deviation beyond 15% from the baseline reading signals the need for tool replacement before the next piece. On the LJ-855, spindle load monitoring is available as a standard feature through the CNC system, allowing shops to implement predictive tool replacement without additional sensors. We have documented surface quality scrap reduction of 30% to 40% after implementing tool condition monitoring on LJ-855 insert production lines, with the additional benefit of reduced instances of insert surface damage from chipped tool edges.
| Surface Quality Grade | Target Ra Value | Recommended Cutting Parameters | Tool Requirements |
| Standard mold surface | Ra1.6~3.2μm | 6000 rpm, 1000 mm/min | Coated carbide |
| Precision mold surface | Ra0.8~1.6μm | 8000 rpm, 1200 mm/min | Solid carbide |
| Optical-grade surface | Below Ra0.4μm | 10000 rpm, 800 mm/min | Solid carbide plus polishing |
The LJ-855 with 10000 rpm fine milling parameters and solid carbide tooling reliably achieves Ra0.4 to 0.8μm surface roughness. Precision insert surface quality first-article pass rates exceed 98%, meeting both optical-grade and functional surface requirements for mold inserts.
· Finish milling allowance recommendation is 0.2 to 0.5mm; excessive allowance increases finish milling burden and degrades surface quality
· Tool vibration must be controlled within 0.005mm—this is the decisive factor for surface quality
· Achieving Ra0.4μm on hard steel above HRC 48 requires multiple finish milling passes or grinding operations
Less Hand Work
3 secondary operation categories drive manual finishing costs on precision inserts, and each responds to high-accuracy primary machining by shrinking in scope. Deburring accounts for the largest share of manual finishing labor on machined inserts—the LJ-855's precise cutting mechanics and controlled tool paths produce minimal burr formation, with sharp edge burr height typically under 0.05mm compared to 0.2 to 0.5mm from less rigid machines. Sharp edge chamfering on holes and pocket openings requires less material removal when the as-machined geometry is already close to final specification. Local polishing to remove isolated surface marks takes less time when the baseline surface from milling is already at Ra0.8μm or better rather than Ra1.6μm. When we combine these three categories, the LJ-855's high-precision machining reduces total manual finishing labor by 40 to 60 hours per month in a typical precision mold shop running 20 to 30 inserts per week.
Beyond direct labor reduction, improved batch dimensional consistency from the LJ-855's precision machining reduces downstream quality problems that would otherwise require manual intervention. The LJ-855 produces inserts with dimensional spread under 0.01mm, and paired with electromagnetic chuck clamping at 0.005mm repeatability, batch consistency improves dramatically—dimensional Cpk values above 1.33 are consistently achievable. Poor batch consistency in precision inserts forces repeated fitting and adjustment during mold assembly, with individual repair times of 0.5 to 2 hours and total cost potentially exceeding the insert's own value. We have confirmed this problem repeatedly in process reviews at multiple mold shops where batch consistency improvements from machine upgrades directly reduced assembly fitting labor by 50% or more in the first production quarter after installation.
The downstream benefits of reduced manual finishing extend beyond direct labor cost savings. When inserts arrive at mold assembly with consistent dimensions and minimal burrs, the assembly process proceeds without interruption for fitting or touch-up work. Assembly technicians can trust that the insert fits as designed rather than discovering dimensional mismatches during the build that require returning parts for re-machining. We have measured assembly throughput improvements of 15% to 20% in mold assembly areas after upgrading machining equipment to LJ-855 precision levels, because the reduction in fitting work cascades through the entire mold build schedule, compressing delivery timelines for complex multi-cavity molds where insert fit timing is on the critical path. These indirect savings often exceed the direct machining labor savings from reduced manual finishing work. When we quantify the total cost of manual finishing in precision insert production—labor, supervision, rework, and opportunity cost from technician time diverted from higher-value work—the LJ-855's high-precision machining delivers ROI in the first 3 to 6 months of production for shops running 20 or more precision inserts per month.
High-precision machining reduces insert burrs by over 80% and sharp edge burr height to under 0.05mm, saving mold shops 40 to 60 hours of manual finishing labor monthly and reducing dimensional inconsistency issues caused by manual repair work.
· Key to reducing manual finishing work: improve machine machining accuracy to reduce burr generation at the source
· Precision insert batch dimensional consistency with Cpk above 1.33 substantially reduces mold assembly fitting work
· Electromagnetic chuck repeatability of 0.005mm is the foundation for ensuring batch consistency
The LJ-855 CNC vertical machining center combines travel, accuracy, and rigidity specifications purpose-designed for precision inserts, along with a rapid tool change system and efficient clamping solution, making it a cost-effective choice for precision mold insert machining—delivering full-process efficiency advantages from setup through machining to accuracy retention, particularly suited for batch production of 20 to 200mm precision inserts.
