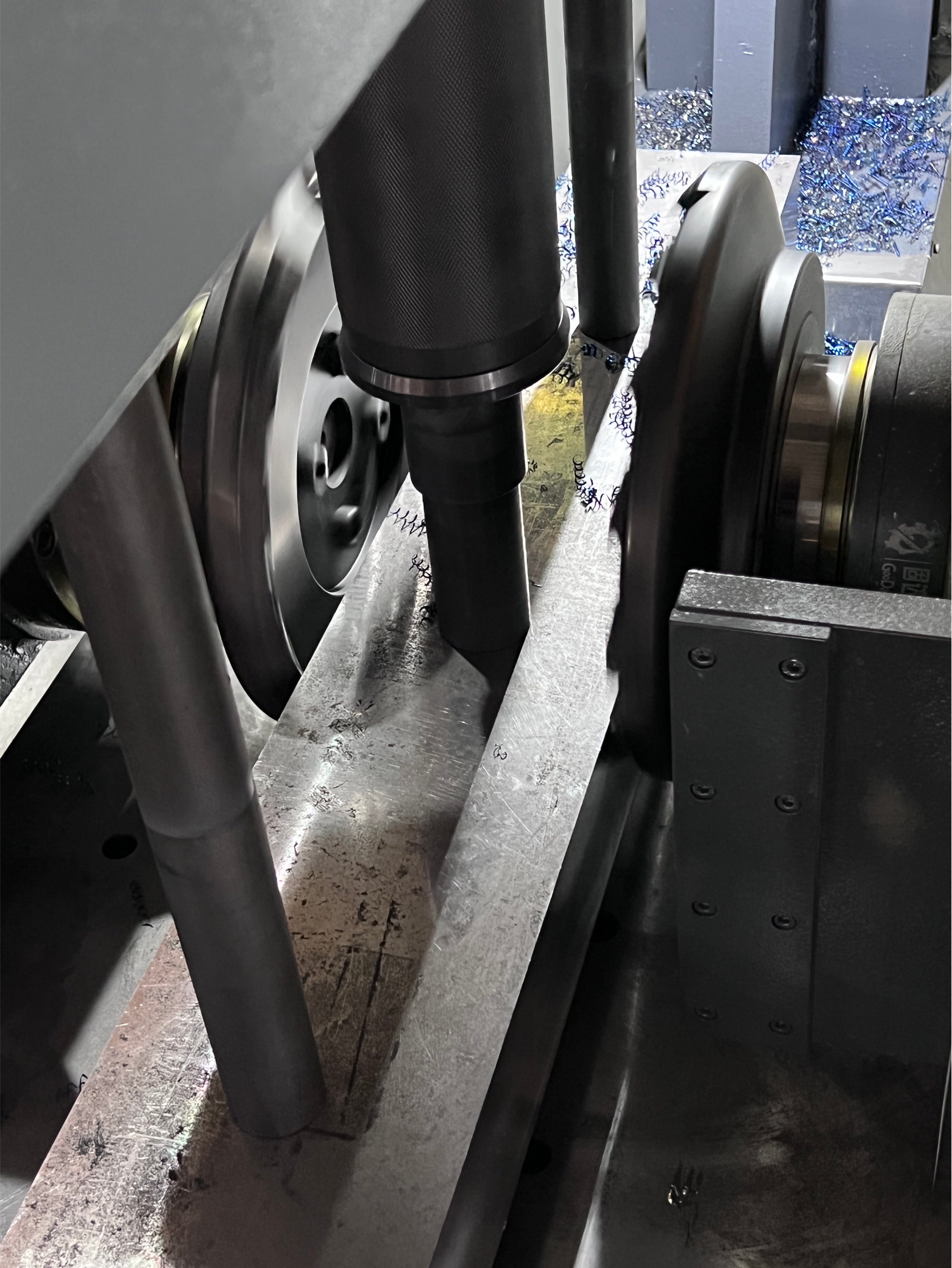

Hold a large metal plate by locating it against solid side and end stops, supporting it below the cutting and clamping areas, and using only enough clamp force to keep it seated. Thick steel plate normally needs strap clamps, through bolts, hydraulic clamps, or magnetic workholding. Thin aluminum and stainless plate need broader support and lighter clamping to prevent bending.
A plate is not safely held just because it cannot be moved by hand. It must remain in position when the cutter enters a slot, changes direction, drills through the material, or removes the final section around an outer profile.
Choose the Holding Method
Use the material, thickness, available holes, required access, and cutting load to narrow the choice:
| Plate or operation | Practical starting method | Main point to check |
|---|---|---|
| Thick steel with heavy roughing | Strap clamps, through bolts, hydraulic clamps, or a suitable magnetic chuck | Strong side and end stops |
| Thin aluminum plate | Full-support fixture plate, vacuum fixture, or low-force edge clamps | Local bending and springback |
| Plate with accurate holes | Locating pins and through bolts | Whether the holes belong to the correct datum system |
| Full top-surface access | Edge clamps, internal bolts, vacuum, or magnetic holding | Sideways cutting force |
| Complete outer profile | Internal bolts, clamp changes, tabs, a bottom skin, or a sacrificial frame | How the part is held during the final cut |
| Tight flatness tolerance | Balanced roughing, unclamping, rechecking, and finish machining | Free-state flatness after release |
“Large” has no fixed size. Treat a plate as large when it approaches the machine travel, needs lifting equipment, overhangs the table, bends under its own weight, or cannot be completed with one clamp arrangement.
Check the Plate
Record the information that changes how the plate must be held:
- Length, width, and starting thickness
- Finished thickness
- Material and hardness
- Approximate weight
- Existing bow, twist, and flatness
- Finished flatness and parallelism tolerances
- Hole, slot, pocket, and profile locations
- Areas available for clamps
- Surfaces that must not receive clamp marks
- Material that will be removed later
Check whether the plate is hot rolled, cold rolled, ground, saw cut, flame cut, plasma cut, or laser cut. Mill scale, rust, paint, oil, burrs, cutting slag, and deep scratches can affect locating, vacuum sealing, and magnetic contact.
A rough flame-cut edge may be tapered or uneven. Do not use it as a precision datum unless it has been checked. When accurate reference faces are needed, machining the stock square before detailed CNC work can improve setup repeatability. See why mold steel blocks need six-side milling.
Different operations create different holding risks:
- Drilling produces downward force and may pull at thin plate during breakthrough.
- Tapping produces torque that can rotate a poorly located plate.
- Slotting creates strong side force because the cutter is engaged on both sides.
- Face milling loads a broad area as the cutting edges enter and leave the plate.
- Profile milling reduces plate stiffness as material is removed.
- Deep pocketing can leave a thin floor that moves under the cutter.
Design the fixture for the strongest stage of the machining cycle, not only for the first operation.
Check the Machine
Confirm that the plate and fixture fit within the machine’s real working limits:
- X-, Y-, and Z-axis travel
- Table load limit
- Plate and fixture combined weight
- Spindle-to-table clearance
- Column, guard, and enclosure clearance
- Door opening and lifting access
- Coolant flow and chip-removal space
A plate may fit on the table but still be too large for the spindle to reach every feature. A tool tip may clear the work while the holder, spindle nose, probe, or coolant nozzle hits a clamp.
Check the center of gravity. A plate may be below the table’s total load rating but still create a large offset load when much of its weight hangs over one side.
For workpieces larger than the travel of a standard vertical machining center, a CNC gantry milling machine may provide a larger work area and higher load capacity. Machine selection must still be based on the actual plate size, weight, height, tool access, and required accuracy.
Calculate the Plate Weight
Estimate the weight before planning how to load, turn, and remove the plate.
Weight = length × width × thickness × density
Use metres for the dimensions and kilograms per cubic metre for density.
A steel plate measuring 1.5 × 0.8 × 0.02 m has a volume of:
1.5 × 0.8 × 0.02 = 0.024 m³
Using a carbon-steel density of approximately 7,850 kg/m³:
0.024 × 7,850 = 188.4 kg
| Material | Approximate density |
|---|---|
| Carbon steel | 7,850 kg/m³ |
| Stainless steel | 7,700–8,000 kg/m³ |
| Aluminum | 2,700 kg/m³ |
| Copper | 8,900 kg/m³ |
For faster estimating, the following values show weight per square metre:
| Plate | Approximate weight per m² |
|---|---|
| 10 mm carbon steel | 78.5 kg/m² |
| 20 mm carbon steel | 157 kg/m² |
| 25 mm carbon steel | 196.3 kg/m² |
| 10 mm aluminum | 27 kg/m² |
| 20 mm aluminum | 54 kg/m² |
A 1.5 × 0.8 m plate has an area of 1.2 m². At 20 mm thick, carbon steel therefore weighs approximately:
1.2 × 157 = 188.4 kg
These figures are suitable for planning. Use the actual material data when the load is close to the lifting-equipment or machine-table limit.
Machining clamps are not lifting devices. Use rated plate clamps, lifting magnets, vacuum lifters, slings, hoists, or cranes according to their instructions. Recheck the center of gravity after large pockets or cutouts have been machined.
Locate, Support, and Clamp
A reliable fixture performs three different jobs:
- Locators set the plate position and resist sideways movement.
- Supports carry the plate weight, clamp pressure, and downward cutting force.
- Clamps keep the plate against the locators and supports.
The cutting load should pass through a solid path:
Tool → plate → locator or support → fixture → machine table
Do not depend only on friction below the plate. Coolant, oil, chips, scale, and vibration can reduce friction during machining.
Place side and end stops where they can resist the strongest cutting direction. Use two well-spaced side contacts when the plate must resist rotation. One small stop near a corner may allow the plate to pivot.
Use the 3-2-1 Method Correctly
A rigid rectangular plate is often located with:
- Three contacts on the lower face
- Two contacts along one side
- One contact on the adjacent end
This is the 3-2-1 locating method. It controls position without using extra locators that may fight each other.
Three lower points define a plane, but they may not provide enough support for a large thin plate. Thin plate can use 3-2-1 positioning while also resting on adjustable supports or a broad fixture surface.
Extra supports must fill gaps without lifting the plate away from its main locating points. Do not tighten an adjustable support until it bends the plate upward.
Locate from Holes
Accurate existing holes can provide repeatable location. A common setup uses one round locating pin and one diamond locating pin.
The round pin controls position in two directions. The diamond pin controls rotation while allowing small differences in hole spacing.
Two close-fitting round pins may bind because of burrs, hole-spacing tolerance, temperature change, or fixture error.
Before loading the plate:
- Clean the pins and holes.
- Remove all burrs.
- Confirm that the holes are part of the intended datum system.
- Lower the plate onto the pins without forcing it sideways.
Use separate clamps or bolts to keep the plate seated. Locating pins should not be expected to carry every cutting load unless the fixture was designed for that purpose.
Support Thin Plate
Support is normally needed below:
- Clamp positions
- Large pockets
- Deep drilling areas
- Thin floors
- Cutter entry and exit areas
- Overhanging sections
- Areas weakened later in the program
Common supports include ground parallels, rest buttons, fixture rails, jack screws, adjustable work supports, and sacrificial plates.
Place strong clamps above supports whenever possible. A clamp over an empty span can bend the plate before the cutter touches it.
Do not use one support spacing for every plate. Material, thickness, span, cut depth, and tolerance all affect bending.
A simple shop check is:
- Place the plate on its main supports.
- Put a test indicator near the middle of an unsupported area.
- Apply light hand pressure near the planned cut.
- Add support if the movement is too large for the required tolerance.
- Check the indicator again after clamping.
For the same material, width, span, and support condition, bending stiffness is roughly proportional to the cube of thickness.
| Thickness change | Relative bending stiffness |
|---|---|
| 6 mm to 9 mm | About 3.4 times |
| 6 mm to 12 mm | About 8 times |
| 10 mm to 15 mm | About 3.4 times |
| 10 mm to 20 mm | About 8 times |
This does not give a universal support spacing, but it explains why a small reduction in plate thickness can cause a large increase in movement.
Bring adjustable supports into light contact and lock them without raising the workpiece. A support only 0.10 mm too high can make the plate rock or bend when the clamps are tightened.
Use Strap Clamps
Strap clamps are suitable for thick plates, heavy roughing, face milling, drilling, prototypes, and low-volume work.
A typical setup uses T-slot nuts, studs, washers, strap clamps, rear supports, lower supports, and solid side stops.
Place the clamp nose on strong material. Avoid:
- Thin unsupported edges
- Rounded or sloped corners
- Finished surfaces that cannot be marked
- Material removed early in the program
- Areas above thin pocket floors
Keep the clamp close to horizontal and use the shortest practical stud. Check that the rear support cannot slide and that the clamp is outside the tool-holder path.
Do not judge clamp force only by wrench feel. Thread condition, lubrication, washers, clamp geometry, and hardware wear all change the force produced by the same torque.
Use Hydraulic Clamps
Hydraulic clamps can reduce setup time and make clamp force more consistent during repeat production. They are useful when the same family of plates is loaded many times.
The hydraulic pressure shown on the gauge is not the force applied to the plate. Clamp force also depends on piston area, clamp-arm geometry, friction, and pad contact.
Use the lowest tested pressure that prevents sliding, lifting, and rotation without bending or marking the plate. Pressure cannot correct weak stops, missing support, or chips below the workpiece.
For repeat plate and mold-block work, review the hydraulic clamping system for CNC machining centers and the guide to hydraulic clamping pressure for mold steel blocks.
Use Edge Clamps
Edge clamps keep most of the top surface open. Pull-down types apply inward and downward force, helping the plate remain seated on the fixture.
Check that the plate edge is thick, straight, and clean enough for reliable contact. Flame-cut taper, loose scale, oil, and thin corners can reduce grip.
Use separate side and end stops. Edge clamps should push the plate toward the stops rather than act as the only locators.
Serrated clamps may leave marks. Place them on rough stock, extra material, or an area that will be removed later.
Use Through Bolts
Through bolts provide strong downward holding while leaving the outside edge open.
They can use:
- Existing mounting holes
- Rough holes that will later be enlarged
- Holes inside scrap areas
- Approved temporary fixture holes
A bolt should pull the plate toward solid support. Tightening a bolt over an empty cavity can bend the plate around the hole.
Use washers or clamp pads large enough to spread the load. Keep bolts away from thin edges and distribute them so they do not pull the plate into a bowl shape.
A bolt in an oversized slot provides clamping but not accurate positioning. Use locating pins or stops when position matters.
Use a Fixture Plate
A fixture plate is useful for repeated work, changing plate sizes, and jobs requiring many clamp positions.
It may include threaded holes, dowel holes, replaceable stops, clamp pockets, clearance holes, vacuum channels, and support pads.
Use a sacrificial plate when drilling through the part or machining a complete outer profile. It supports the material close to the cut and protects the machine table.
Before installation:
- Clean the table and fixture underside.
- Remove raised burrs.
- Check locating keys or pins.
- Tighten the mounting bolts gradually.
- Check fixture flatness.
Mounting bolts hold the fixture plate down. Precision keys or pins control its repeated position. Clearance bolts alone do not guarantee that the plate will return to the same coordinate after removal.
Use Vacuum Holding
Vacuum holding is useful for broad, flat, nonmagnetic plates when the top surface must remain open.
It is commonly used for aluminum, brass, nonmagnetic stainless steel, engraving, shallow pockets, drilling, and finishing cuts.
The theoretical downward force is:
Force = pressure difference × effective sealed area
| Effective sealed area | Pressure difference | Theoretical downward force |
|---|---|---|
| 0.05 m² | 80 kPa | 4,000 N |
| 0.10 m² | 80 kPa | 8,000 N |
| 0.20 m² | 80 kPa | 16,000 N |
| 0.30 m² | 80 kPa | 24,000 N |
These figures are theoretical downward forces. They are not the permitted milling loads. The safe load depends on the seal, friction, coolant, plate surface, mechanical stops, cutting direction, leakage, and fixture limits.
Vacuum pulls the plate downward. Sideways resistance mainly comes from friction and mechanical stops.
Calculate force from the effective sealed area, not the full outside size. Subtract holes, gasket channels, slots, large pockets, and areas opened by the cutter.
For example, if machining reduces the effective area from 0.20 m² to 0.12 m² at an 80 kPa pressure difference:
- Before machining: 80,000 × 0.20 = 16,000 N
- After machining: 80,000 × 0.12 = 9,600 N
The theoretical downward force has fallen by 40%. This is why a vacuum setup can be stable at the start but weaker after large holes, pockets, or profiles are opened.
Use separate vacuum zones, check valves, pressure monitoring, and a low-vacuum machine stop. Test for leakage before machining.
Vacuum is a poor choice for heavily scaled, porous, badly scratched, or strongly warped plate. It can also pull a bowed thin plate flat during machining, allowing the plate to spring back after release.
Use Magnetic Holding
Magnetic chucks can hold carbon steel, low-alloy steel, tool steel, and other magnetic materials while keeping the top surface open.
They do not provide useful holding on aluminum, brass, copper, titanium, or most austenitic stainless steels. Test the actual stainless grade instead of relying only on the material name.
Holding performance depends on:
- Material type
- Plate thickness
- Surface flatness
- Contact area
- Magnetic pole coverage
- Air gaps caused by rust, paint, scale, or chips
The chuck pulls the plate toward its surface. Sideways resistance depends on friction and solid side or end stops.
Thin steel may not carry the full magnetic field. Follow the chuck manufacturer’s minimum thickness, pole-coverage, and holding-force data.
A strong magnetic chuck can pull a bowed steel plate flat. Check the free shape after the magnetic force is released. Use the approved release or demagnetizing cycle when required.
Prevent Plate Distortion
Plate shape can change for four main reasons:
- Initial distortion: the raw plate is already bowed or twisted.
- Clamping distortion: the fixture forces the plate into a temporary shape.
- Stress release: material removal changes the balance of internal stress.
- Heat: cutting and uneven coolant change the plate temperature.
If a bowed plate is forced flat and machined, the finished surface may bend after the clamps are released.
For tight flatness:
- Support the plate in a stable natural state.
- Rough the first side.
- Turn and rough the second side.
- Leave finishing allowance on both sides.
- Release the plate and measure its free shape.
- Set the plate again and finish both sides in balanced stages.
- Inspect the final part after unclamping.
Residual stress, uneven material removal, heat, and clamp pressure are covered in more detail in How to Prevent Mold Steel Deformation During CNC Machining.
Limit Clamp Force
Use enough force to keep the plate seated, but do not use clamp pressure to correct poor support or original bow.
Signs of too much force include:
- The indicator moves when a clamp is tightened.
- One corner closes while another rises.
- The plate is flat only while clamped.
- Thickness changes near the clamp points.
- The plate bends after release.
Tighten the clamps gradually in a balanced sequence suited to the actual fixture. There is no universal rule that every plate must be tightened from the center outward.
Control Heat
Dull tools, rubbing, poor chip removal, heavy cuts, and uneven coolant can change the plate size during machining.
| Material and length | 2°C change | 5°C change | 10°C change |
|---|---|---|---|
| 1 m steel plate | About 0.024 mm | About 0.060 mm | About 0.120 mm |
| 1 m aluminum plate | About 0.046 mm | About 0.115 mm | About 0.230 mm |
For close tolerances, allow the machine, fixture, plate, and measuring equipment to reach a stable temperature. Do not treat a measurement taken immediately after heavy cutting as the final room-temperature size.
Reduce Cutting Force
When the plate or fixture is flexible, make changes in this order:
- Shorten the tool overhang.
- Use a sharp cutter made for the material.
- Use a rigid holder.
- Reduce radial engagement.
- Use a smooth ramp or helical entry.
- Avoid sudden full-width cutting.
- Improve chip removal.
- Reduce cutting depth when necessary.
- Adjust speed and feed using the tool manufacturer’s data.
Do not reduce the feed until the tool only rubs. Rubbing adds heat, shortens tool life, and can increase vibration.
Choose the cutter and insert for the plate material and operation. Asiatools provides CNC cutting tools for milling, drilling, and related machining work.
Plan the Cutting Direction
Milling force changes as the tool enters, turns, and exits. Check the complete toolpath, not only the first straight cut.
Pay attention to:
- Full-width slots
- Face-milling entry and exit
- Profile corners
- Arc moves
- Drill breakthrough
- Tapping torque
Where practical, direct the strongest cut toward a solid stop. Do not assume that one stop protects the full program because the force direction may change at corners or opposite-side passes.
Move Clamps Safely
Some profiles require clamps to be moved during the job.
- Stop the spindle at a programmed position.
- Move the tool to a safe area.
- Keep enough clamps, locators, and stops active to prevent sliding, rotation, and lifting.
- Install the new clamp before removing the old one.
- Check that the plate is still against the locators.
- Check the datum with an indicator or probe.
- Confirm the new clamp position in the CAM setup.
Do not rely on a fixed rule such as “two clamps are enough.” Two clamps in poor positions may still allow the plate to rotate.
Hold a Complete Outer Profile
When the complete outside profile must be machined, use internal bolts, planned clamp changes, distributed tabs, a thin bottom skin, or a sacrificial outer frame.
Place tabs where they do not affect critical surfaces and where they remain supported. Use several tabs rather than one large tab that can act like a hinge.
The setup may be rigid at the start but become weak after most surrounding material has been removed. Before cutting the final connection, check:
- Whether the remaining material can carry the part weight
- Whether the part can close on the cutter
- Whether stress release can move the part
- How the released part will be lifted safely
Use low cutting force for the final separation pass.
Compare Two Plate Examples
| Example | Dimensions | Approximate weight | Main holding concern |
|---|---|---|---|
| Thin aluminum panel | 1,200 × 700 × 6 mm | 13.6 kg | Local bending, vacuum leakage, and springback |
| Thick steel plate | 1,500 × 800 × 25 mm | 235.5 kg | Lifting, table load, side force, and clamp support |
The aluminum panel is light enough to look easy to hold, but its 6 mm thickness makes it much more flexible. A full-support fixture or vacuum plate is usually more useful than four strong clamps at the corners.
The 25 mm steel plate is much stiffer, but it requires rated lifting equipment and strong stops. Strap clamps or magnetic workholding may be suitable, provided that the machine table, clamp hardware, and side-load path have been checked.
Check for Collisions
Include the complete fixture in the CAM model:
- Clamps, studs, and nuts
- Stops and support blocks
- Fixture plates
- Vacuum fittings and hoses
- Magnetic-chuck controls
- Lifting eyes
Check the cutter, tool holder, spindle nose, probe, and coolant nozzles. The model must match the actual stud length, clamp height, tool extension, and every clamp-change position.
Use machine simulation, reduced rapid movement, single-block operation, and a dry run above the plate when appropriate.
Test the Setup
Do not begin a new fixture with the heaviest cut.
Use a controlled first pass and check:
- Witness marks between the plate and fixture
- Indicator movement
- Clamp vibration
- Rising corners
- Vacuum level
- Magnetic-chuck status
- Spindle load
- Unusual noise
Stop and inspect the setup after the first demanding operation. A weak support or stop may not become obvious until the cutter reaches full engagement.
Fix Common Problems
If the plate chatters:
- Add support closer to the cutter.
- Shorten the tool and holder extension.
- Reduce radial engagement.
- Use a sharper cutter.
- Check loose fixture bolts and trapped chips.
More clamp force will not repair a wide unsupported span. See Tool Chatter Causes and Fixes in Side Milling for a wider check of the tool, holder, machine, parameters, and workpiece support.
If the plate slides or rotates:
- Check the side and end stops.
- Move the stops farther apart to resist rotation.
- Remove oil, loose scale, and chips.
- Check vacuum friction or magnetic contact.
- Reduce the cutting load.
If one corner lifts:
- Check for a chip below the plate.
- Check support heights.
- Move the clamp above a support.
- Use a better tightening sequence.
- Check the original plate bow.
Do not force a lifted corner down with one very strong clamp. Find the cause first.
Final Check
- Plate and fixture weight are known.
- The lifting method and machine table are rated for the load.
- Side and end stops resist the main cutting force.
- Major clamps sit above supports.
- The plate is stable without being forced into a false shape.
- The cutter, holder, spindle, and probe clear the fixture.
- Through-holes have safe clearance.
- Vacuum or magnetic holding is within its approved condition.
- The correct work coordinate is active.
- Machine doors and guards are in place.
Conclusion
A safe large-plate setup uses solid stops for side force, support below every major clamp and cutting area, and only enough pressure to keep the plate seated. A 1.5 × 0.8 × 0.02 m steel plate weighs about 188 kg, while a 1,200 × 700 × 6 mm aluminum panel weighs only about 13.6 kg but bends much more easily. At an 80 kPa pressure difference, reducing vacuum area from 0.20 to 0.12 m² cuts theoretical holding force from 16,000 to 9,600 N. Check movement with an indicator, balance material removal on both sides, and inspect the finished plate after all clamps, vacuum, or magnetic force have been released.
