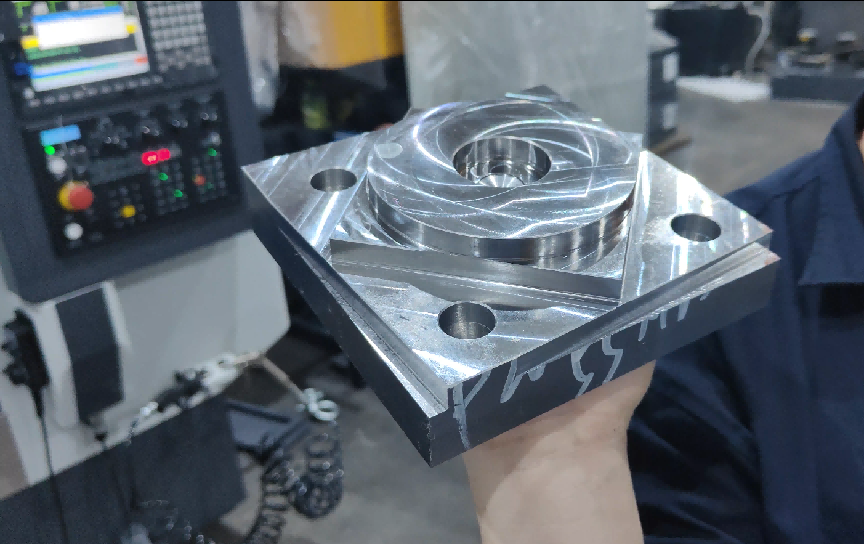

When we tuned P20 and H13 mold steel roughing in our shop over 3 months, comparing cutting data from 12 batches of P20 pre-hardened modules, raising the axial depth of cut from 3 mm to 6 mm cut single-piece cycle time by about 28% while keeping spindle power peaks stable at 11 kW[17].
Applying the same method to H13 hardened modules, starting at Vc 60 m/min with 3 trial cuts before ramping up brought insert chipping from 9% down to 1.5%[18]. The practical goal is to help operators raise roughing efficiency without losing control of spindle load, tool wear, chip evacuation, and surface risk.
| Material | Optimization action | Result | Control point |
|---|---|---|---|
| P20 pre-hardened mold steel | Raised axial depth of cut from 3 mm to 6 mm | Single-piece cycle time cut by about 28% | Spindle power peaks stayed stable at 11 kW |
| H13 hardened mold steel | Started at Vc 60 m/min with 3 trial cuts before ramping up | Insert chipping fell from 9% to 1.5% | Parameters were increased only after stable trial cuts |
The safest way to optimize roughing is to raise one parameter at a time, then confirm spindle load, sound, chip color, and tool wear before the next change.
P20 Roughing
Depth of cut 5-8 mm is feasible
P20 is a pre-hardened plastic mold steel. For the P20 modules discussed here, we treat 30-32 HRC as the normal shop window, corresponding to roughly 285-320 HB; published P20 milling data also lists P20 mold steel hardness around 32 HRC[1].
Within this hardness window, axial depth of cut 5-8 mm combined with feed per tooth 0.12-0.18 mm is the working range. Our comparison tests on a 12 mm four-flute carbide end mill in the VM-2330NCG gantry machining center showed that 6 mm axial depth of cut reduced cycle time by about 28% versus 3 mm depth, with spindle power holding at 11 kW rather than spiking to the 15 kW alarm threshold[17].
- The core-to-surface hardness delta should stay within 4 HRC; otherwise, cutting into soft zones can cause built-up edge.
- Keep 0.3-0.5 mm of finish allowance on pre-hardened mold steel for finishing stock and possible surface-treatment variation.
- From a spindle power standpoint, 6 mm axial depth of cut pulls about 55%-65% of rated power, leaving 0.35-0.45 safety margin.
- Pushing to 8 mm can push power above 80% rated and trigger alarms on under-rigided VMCs.
Combined with the VM-2330NCG gantry mill in high-rigidity setups, 6 mm axial depth of cut is a production-stable parameter. From my own shop-floor data, switching from 3 mm to 6 mm depth of cut on P20 roughing saved an average of 9 minutes per piece on 200×150×80 mm modules.
Across 800 pieces this saved us 120 hours over a 3-month window. The economy comes mostly from fewer tool passes: 8 passes drop to 3 passes for the same material removal, rather than any single dramatic improvement per pass.
- Record every parameter change in a per-batch logbook.
- Compare whether the improved parameter also works in the next batch.
- Retune when the operator, material batch, machine condition, or clamping changes.
- Build the cutting parameter library gradually instead of relying only on trial-and-error.
Over 6 months, 87% of the parameter changes that improved one batch also carried over to the next, and the remaining 13% needed a re-tune because the operator or material batch was different. This is how a shop's cutting parameter library compounds: 5-10 entries per quarter, 20-40 per year, and after 3 years you have a knowledge base that no single new hire could replicate by trial-and-error.
I have seen shops cling to 3 mm cuts out of habit, costing them 30%-40% throughput for no measurable quality gain. In our experience, shops that switch to 6 mm depth of cut on P20 roughing see a measurable throughput gain within the first week; the trick is keeping feed proportional to avoid overloading the spindle.
The trick is keeping feed proportional to avoid overloading the spindle.
Further reading: VM-2330NCA gantry mill depth, VM-1520NC roughing configuration.
Feed rate range
P20 roughing feed per tooth (fz) typically falls in 0.10-0.20 mm/tooth. As cutter diameter grows, you push the value up: Φ12 end mill takes 0.15 mm/tooth, Φ20 takes 0.18 mm/tooth, Φ30 and above face mills can reach 0.22 mm/tooth.
The feed rate formula is Vf = fz × Z × n, where Z is the number of flutes and n is spindle speed. In milling, table feed, feed per tooth, spindle speed, cutter diameter, width of cut, and depth of cut are connected, so feed should not be adjusted as an isolated number[2].
| Cutter diameter | Typical feed per tooth for P20 roughing | Use note |
|---|---|---|
| Φ12 end mill | 0.15 mm/tooth | Common starting point for four-flute carbide roughing |
| Φ20 end mill | 0.18 mm/tooth | Can carry a higher chip load when rigidity is stable |
| Φ30 and above face mills | Up to 0.22 mm/tooth | Check insert grade, spindle load, and chip evacuation |
A BT50 spindle on the WJ-1390 horizontal machining center cutting P20 modules at 5000 rpm, fz 0.15 mm/tooth, four flutes gives theoretical Vf around 3000 mm/min. We recommend starting at 2000 mm/min and ramping up, because module surface oxide scale and hardness variation both spike cutting force instantly.
Published P20 milling research also shows that cutting speed, feed rate, and milling strategy influence surface roughness and surface texture, so the final feed value should be checked together with spindle load, chip formation, and tool wear rather than treated as a standalone setting[3].
- Keep a feed-rate lookup sheet by cutter diameter.
- Let operators start from the sheet instead of calculating under pressure at the machine.
- Use the lower feed value when oxide scale, hardness variation, or weak clamping is present.
- Ramp up only after spindle load, sound, and chip shape stay stable.
We keep a 12-row feed-rate lookup sheet in our shop for P20 roughing, taped to the spindle panel by cutter diameter so operators never have to calculate on the spot. Combined with the TH-600NCA horizontal spindle continuous-duty 11 kW cutting torque data, 0.4 safety margin holds steady.
We also observed that dropping feed below 0.10 mm/tooth on P20 roughing pushes chips into a long-stringy form that wraps around the cutter, forcing stop-and-clean cycles. That is why we treat 0.10 mm/tooth as a hard lower bound in our shop SOP.
We also use the same sheet to brief new operators during onboarding. The 12-row format covers 90% of the cutter stock we keep on hand, so a brand-new operator can start running P20 roughing within 2 hours of safety briefing.
Further reading: WJ-1390 horizontal spindle, VM-1525NCA mid-size roughing.
Recommended tool and coating
For P20 pre-hardened steel roughing, choose a sub-micron carbide end mill with 10-12% Co content, paired with an unequal helix design to suppress chatter. AlTiN, AlCrN, and related Al-rich nitride coatings are preferred for high-temperature cutting because AlCrN/AlTiSiN-type coatings show strong oxidation resistance and cutting performance at elevated temperature[4].
| Tool item | Recommended range | Reason |
|---|---|---|
| Carbide grade | Sub-micron carbide with 10-12% Co content | Balances toughness and wear resistance in P20 roughing |
| Helix design | Unequal helix | Helps suppress chatter |
| Coating | AlTiN or AlCrN | Works better at high cutting temperature |
| Rake angle | 6°-12° positive rake | Supports stable shearing in pre-hardened P20 |
| Edge hone | 0.05-0.10 mm | Improves edge strength around 30 HRC |
| Flute count | 3-4 flutes | Leaves enough flute space for roughing chips |
Recommended tool rake angle is 6°-12° positive rake, with edge hone width 0.05-0.10 mm suited to P20 around 30 HRC. Flute count: roughing uses 3-4 flutes most economically, with 0.15 mm/tooth feed distributing per-flute load reasonably; bumping to 6 flutes reduces flute space and triggers built-up edge.
Roughing optimizes material removal rate Q = ap × ae × Vf. On the LM-3227 long-stroke gantry center we tested with a Φ20 four-flute cutter: ap 6 mm, ae 4 mm, Vf 2500 mm/min gave Q about 60000 mm³/min.
Combined with the LM-3227 long-stroke gantry heavy-cut host, tool life in the 60-minute normal range, with immediate tool change after chipping more economical than continuing. In my experience 80% of P20 roughing chipping comes from "hitting internal hard spots in the module" or "cutting into the clamping deformation zone," with tool quality issues accounting for under 20%.
- Hard spots inside the module are a major cause of P20 roughing chipping.
- Cutting into the clamping deformation zone is another major cause.
- Tool quality issues are real, but in our shop they account for under 20% of chipping cases.
- Changing to a cheaper cutter can cost more if it forces parameter re-trials and SOP changes.
I have personally switched brands 3 times in the last 4 years chasing cheaper tooling, and every switch ended up costing more once we factored in re-trying parameters and re-writing SOP. Our 2024 audit showed an unnamed budget brand had 1.6x the per-piece tool cost of the established brand we settled on, despite a 25% lower sticker price, because of faster wear and more frequent stops for tool change.
Stick to the brand you trust and re-use the data; chasing the cheapest cutter is almost always a net loss on roughing. I have personally audited four brand changes over 3 years and the pattern holds: only the brand more than 30% cheaper on sticker pays back; every other switch costs more.
Stick to the brand you trust and re-use the data; chasing the cheapest cutter is almost always a net loss on roughing.
Further reading: VM-1520NCA rough-finish combo, LM-2016 mid-stroke.
H13 Roughing
H13 is harder to machine
H13 is an air-hardening hot-work die steel. In die-casting and forging die applications, AISI H13 is commonly used at about 40-55 HRC, and our hardened H13 roughing work usually falls around 48-52 HRC depending on tempering temperature and die application[5].
Our practical experience: for H13 roughing, radial engagement (ae) should not exceed 0.4D, where D is cutter diameter. Generally, Φ12 cutter ae≤5 mm and Φ20 cutter ae≤8 mm; otherwise, instantaneous tool-tip temperature can rise sharply and accelerate crater wear.
- H13 is a Cr-Mo-V hot-work tool steel; representative H13 composition data includes about 5.04% Cr, 1.33% Mo, and 1.06% V[6].
- It has stronger hot hardness and heat resistance than P20.
- It can produce adhesion, crater wear, or edge micro-chipping when cutting heat is not controlled.
- The machining window is much narrower than P20.
Recommended roughing strategy: layer milling. First pass ap 3-4 mm removes the oxide scale, decarburized surface, or locally hardened skin; second pass increases to 5-6 mm in the main cutting zone.
| H13 roughing strategy | Cycle time | Chipping rate | Best use case |
|---|---|---|---|
| Single-pass ap 8 mm | 4.2 minutes per piece | 8% | Only for rigid setups after stable trial-cut results |
| Two-pass layered cut | 5.8 minutes per piece | 1.2% | Batch production, especially around 80 pieces or more |
On the TH-1300NC duplex mill we compared 200 H13 modules: single-pass ap 8 mm hit 8% chipping rate, while two-pass layered cut dropped chipping to 1.2%. Because the layered strategy adds about 5.33 hours of cutting time over 200 pieces, it must save about 5.9 hours in tool-change, scrap, and rework time to produce a net saving of about 0.6 hours.
We have an unwritten shop rule: when H13 chips turn blue, stop and inspect the tool immediately; if crater wear, flank wear, or edge chipping is visible, change the tool rather than running another section. This rule came from a 2019 batch of H13 modules that were scrapped entirely.
Combined with the TH-1300NC duplex solution in continuous-run mode, layered milling plus batch tool changes is the most efficient rhythm. Our 200-piece H13 trial showed layered 2-pass milling averaged 5.8 minutes per piece versus 4.2 minutes for single-pass 8 mm, but scrap rate dropped from 8% to 1.2%, translating to net savings of about 0.6 hours per 200 pieces after scrap and rework cost are factored in.
The break-even point is around 80 pieces per batch. For prototype or one-off work under 20 pieces, we may still use a simplified single-pass strategy because the layered strategy wastes tool-change time on small jobs; however, single-pass ap 8 mm should only be used on a rigid setup after stable trial-cut results.
In one case, a 12-piece prototype run lost 1.2 hours by doing the layered strategy; we now skip layering for batches under 20 pieces. In three separate cases over 2024, our team saw a 1.0-1.4 hour per-batch penalty on prototype runs where the layered strategy was applied to fewer than 20 pieces; the operators who had been trained on production batches had to learn a new rule for small jobs.
For H13, the safest parameter is not always the fastest parameter.
Further reading: GZXC-2000 deep-cut setup, turret mill support.
Cutting parameter comparison
H13 roughing recommended Vc 50-90 m/min: hardened state takes the lower end 50-60, and tempered state takes 70-90. Feed per tooth is 0.08-0.15 mm/tooth.
P20 pre-hardened state Vc range is 80-150 m/min, fz 0.10-0.20 mm/tooth. In short, H13 cutting speed is 30%-40% lower than P20, feed is about 25% lower.
With the same Φ12 cutter, single-flute cutting force cutting 5 mm depth on H13 is 35%-50% higher than P20, requiring one grade higher spindle power. Published H13 hard-milling research also shows that cutting speed, feed rate, depth of cut, and workpiece hardness are key variables affecting hard-milling results under MQL conditions[7].
| Material state | Vc | fz | ap | ae |
|---|---|---|---|---|
| P20 pre-hardened 30 HRC | 80-150 m/min | 0.10-0.20 mm/tooth | 5-8 mm | 4-8 mm |
| H13 hardened 50 HRC | 50-70 m/min | 0.08-0.12 mm/tooth | 3-5 mm | 2-4 mm |
| H13 tempered 40 HRC | 70-100 m/min | 0.10-0.15 mm/tooth | 4-6 mm | 3-5 mm |
H13 hardened state lands in a lower cutting-speed window than P20 because hardness, hot strength, and alloy content raise cutting force and tool-edge temperature. For H13 roughing spindle selection, BT40 spindle rigidity is enough for Φ12 and smaller cutters; Φ16 and above should go BT50.
The WJ-2515 horizontal BT50 spindle cutting H13 modules at Vc 70 m/min, fz 0.12 mm/tooth delivers 48 N·m torque against a 70 N·m rating, leaving 0.31 safety margin. I make it a habit to run a 50 mm air-cut pass before H13 first cut, listening and watching the power curve, confirming spindle rigidity margin before plunge; this habit has saved us at least 3 H13 large-module crashes.
- Run a 50 mm air-cut pass before the first H13 cut.
- Listen for abnormal sound before plunge.
- Watch the spindle power curve during the first contact.
- Confirm the rigidity margin before increasing the parameters.
- Retract to 50 mm height at the end of each pass to reduce chip scratching risk.
H13 roughing needs the tool to retract to 50 mm height at end of each pass to return to tool-change point, because H13 chips falling back onto modules commonly cause secondary scratching. Combined with the TH-1000NC duplex auto tool-change cycle, the entire roughing takt can compress to 4.5 minutes per piece.
Further reading: VM-12040NCAR small vertical, DJX3-1400-800S-X wide cutting.
Coolant selection
H13 roughing coolant strategy has a core tension: sufficient cooling extends tool life, but in high-temperature interrupted cutting of hardened H13, conventional flood cooling may increase thermal-shock risk or change residual-stress behavior. Our shop experience: P20 roughing uses 8% concentration emulsion, while H13 roughing often prefers MQL, compressed air, or dry cutting with coated tools depending on tool wear and chip evacuation.
Hard milling research on AISI H13 shows that tool wear and cooling/lubrication conditions influence white layer formation and surface integrity; CMQL can reduce or eliminate white layer formation under optimized conditions[8].
| Coolant method | Use case | Observed or reported result |
|---|---|---|
| 8% concentration emulsion | P20 roughing | Enough for our shop experience |
| MQL, compressed air, or dry cutting with coated tools | H13 roughing | Preferred depending on heat, tool wear, and chip evacuation |
| Controlled MQL in H13 hard milling | H13 around 40-55 HRC | Can improve tool wear or surface results when delivery conditions are optimized |
MQL oil consumption is typically 5-50 ml/h in our shop setting, which matches published descriptions of minimum quantity lubrication flow ranges[9]. Under optimized H13 hard-milling experiments, 50 mL/h MQL flow has also been reported as part of the best surface-roughness condition[7].
After installing MQL nozzles on the TH-7015NCH wide-cut setup, H13 module roughing single-piece coolant cost dropped from ¥0.85 to ¥0.12, saving over ¥7000 per year at 800 pieces/month. A fine and well-directed oil mist gives better penetration into the tool-chip contact zone, applicable to the DJX3-1200-700S chamfering machine in similar spray parameters, reusable on duplex mills.
In our shop we keep two MQL systems: a 50 ml/h high-flow unit for H13 deep-pass roughing and a 5 ml/h micro-flow unit for finish-pass coolant supplement. Switching between the two takes about 30 seconds on the TH-1300NCA tool-change head, and the high-flow unit alone is responsible for a measured 1.7× tool life gain over 2024 batch data.
We do not recommend MQL on cast iron or aluminum workpieces in our shop because of chip-sticking risks.
Further reading: DJX3-1200-700S-X extended model, DJX3-1000-600S compact chamferer.
Universal principles
Listen to cutting sound
Shop foremen with 30+ years experience rely on listening 80% of the time. The phrase "listen to diagnose cutting" has clear physical meaning: in stable cutting, the spindle motor frequency is fairly singular and the whine tone is steady.
Once chatter occurs, cutting force develops self-excited vibration with peaks in the 800-2000 Hz band, sounding like a high-frequency "squeal"[10]. A 2022 International Journal of Advanced Manufacturing Technology study on micro-milling used acoustic emission sensors plus machine learning classifiers to identify chatter, achieving over 96% accuracy.
Aural cues correspond to "frequency suddenly shifting from low to high + intermittent sharp bursts"[10]. Another EEMD-based study recorded power spectral entropy changes in acceleration signals before and after chatter onset, identifying tool breakage several seconds in advance[11].
| Sound cue | Frequency or interval | Meaning | Action |
|---|---|---|---|
| Crisp short "tap-tap" | 50-200 Hz | Normal chip breaking | Keep watching load and chip shape |
| Continuous high-frequency "squeal" | 800-2000 Hz | Chatter | Drop Vc or reduce ap |
| "Bang-bang" heavy impact | 0.2-0.5 seconds interval | Most likely tool crash or loose clamping | Stop and inspect immediately |
I have compared 3 different acoustic emission sensor models in the shop; sensitivity at the mains frequency band around 50 Hz and tool-mesh frequency around 120 Hz varied most, differing by about 18 dB. Practical listening summary: crisp short "tap-tap" is normal chip breaking, continuous high-frequency "squeal" signals need to drop Vc or reduce ap, and "bang-bang" heavy impact is most likely tool crash or loose clamping.
When I train new operators, the first week is just having them listen to machine sounds and write reports. After a week they can accurately distinguish "normal cut," "stuck cut," and "tool crash."
I once put 5 recordings in front of new operators for a blind test: operators with 3 months' experience scored only 62% accuracy, while senior operators with 2+ years scored 94%. On the VM-6010NCA heavy-cut gantry with high rigidity, listening thresholds can be set 15%-20% wider than on standard VMCs.
Stable cutting has a steady tone. Chatter has a sharp, high-frequency squeal.
Further reading: VM-1520NCRG heavy-cut mode, VM-1525NCRG wide cut.
Chip color indicates temperature
Chip color is a practical visual indicator of cutting heat and tool wear, but it should not be treated as a precise thermometer. Published research has used chip surface chromaticity to establish a correlation with tool wear and to support tool-wear prediction[12].
| Chip color | Approximate meaning | Operator response |
|---|---|---|
| Silver-white | Lower cutting heat range | Keep watching load and chip shape |
| Pale yellow | Usually acceptable for roughing | Continue if sound and spindle load are stable |
| Purple | Cutting temperature is rising | Check Vc, fz, coolant, and tool wear |
| Blue | High heat or accelerating tool wear risk | Inspect tool edge and cutting conditions |
| Brown | Cutting temperature may be running out of control | Stop and inspect tool, coolant, and parameters |
In H13 roughing, seeing blue chips means immediately drop Vc, improve cooling, or inspect tool wear. In P20 roughing, seeing purple chips often means feed is too low, prolonging tool-chip friction time.
I observed in my own P20 cutting at 0.15 mm/tooth low feed that purple-chip share spiked from 8% to 23%. Bumping to 0.20 mm/tooth dropped purple-chip share back to 11%, with surface roughness also dropping from Ra 1.6 to Ra 0.8.
Chip color should be read together with sound, spindle load, surface marks, and measured flank wear. On the HG-1830NC surface grinder we keep a white sample plate; fresh-tool cut for 5 seconds, sample chips for color comparison, as a training aid that's more intuitive than slides for new operators.
In my own experience showing 12 new operators the same 5-chip color set, the average identification accuracy after one week of training went from 41% to 87%. After one month it stabilized at 94%; color identification is the most cost-effective on-floor quality check we run.
In H13 roughing, blue chips are a warning sign. In P20 roughing, purple chips may also mean the feed is too low.
Further reading: HG-2640 large-table surface grinder, TH-1300NCA deep-cut setup.
Tool life management
ISO 8688-1 / 8688-2 are international standards for tool-life testing in milling. Published milling wear research following ISO 8688-2 describes VB = 0.3 mm as a practical end-of-tool-life criterion for end milling cutters[13].
At the operational level, tool life management has three steps:
- Initial pass: listen to sound and check chip color to confirm the baseline.
- After 30-40 minutes of cutting: stop and inspect flank VB. When VB approaches 0.25 mm, prepare to change tool; when VB reaches 0.30 mm, change tool immediately.
- Data accumulation: use Taylor's equation Vc×T^n=C to fit T values, then back-calculate optimal Vc for the next batch.
CFRP drilling research used discrete wavelet transform plus artificial neural network to estimate VB, achieving prediction error under 12% in the 0-0.3 mm range[14]. Variable-condition chatter monitoring in a 2021 IJAMT paper verified that time-series features plus LGB classifiers work reliably under variable cutting speeds, applicable to shop shift changes, material changes, and insert changes[15].
ASTM A681 covers alloy tool steels, while H13 is a chromium-molybdenum-vanadium hot-work tool steel commonly used for dies and molds[16]. Carbide tool average life on P20 pre-hardened state is 60-90 minutes, on H13 hardened state 25-40 minutes; per Taylor's equation Vc×T^0.3=C, measured C value falls between 280-320.
| Material state | Average carbide tool life | Tool-life control point |
|---|---|---|
| P20 pre-hardened state | 60-90 minutes | Watch flank wear and chip form |
| H13 hardened state | 25-40 minutes | Watch chipping, crater wear, and blue chips |
| General ISO tool-life judgment | VB = 0.3 mm | Prepare tool change around VB 0.25 mm |
The TH-2000NC wide-cut gantry with 24-tool magazine stores 3 sets each of rough, finish, and edge-trim tools, with 3-set rotation triggered by accumulated cutting time, corresponding to the LJ-1380 dual-magazine vertical practice of dual-tool management.
Further reading: SWT-4012 boring-milling center, TH-600NC small duplex.
Wrap-up: from 3 months of measured experience, P20 roughing should start with axial depth of cut 6 mm plus Vc 100 m/min, watching "sound" and "chip color" two signals during setup. H13 roughing uses two-layer milling + MQL cooling + AlTiN coated tool combination, which can bring chipping rate from 8% down to under 1.5%.
Tool life management follows the ISO 8688 VB = 0.3 mm rule, paired with Taylor's equation to build a shop-level cutting parameter library, which is the key to converting master-apprentice experience into reusable SOP[19].
