How to Reduce Re-Clamping in Mold Base Machining | WJ-800 HMC, Datum Control, 4-Side Cutting

The WJ-800 horizontal machining center's four-sided open structure efficiently completes all mold machining operations in a single setup, reducing re-clamping frequency from the industry average of 3.2 times per part down to under 0.5 times, delivering a 62% improvement in overall machining efficiency and extending insert tool life by 28%.

Why Re-Clamping Hurts

Lost Datum

The mold datum hole is the absolute reference frame for cavity machining—and every re-clamping operation redefines that reference frame, which means every re-clamp introduces and accumulates error.

Industry measurement data shows that after a single re-clamping cycle, the contact stiffness of a standard ER40 collet declines by 12% to 18%, and the fit clearance between the spindle taper bore and tool shank expands from 0.005mm (new condition) to 0.032mm after the third re-clamp—a 6.4× increase. This clearance amplification drives tool radial runout from 0.008mm to 0.035mm, a 4.4× increase that translates into a 0.087mm cumulative size deviation on a 50mm diameter milling pass, exceeding the ±0.03mm tolerance band for precision mold tooling.

A single optical lens mold worth 150,000 CNY experienced a 32,000 CNY batch scrapping loss from one re-clamp-induced datum shift, representing 21% of total mold value. Beyond direct scrap cost, there is also downstream customer relationship damage—one major automotive supplier replaced a mold vendor after three consecutive deliveries showed the same re-clamping error pattern, resulting in a 2.3 million CNY annual contract loss for the mold shop.

The hidden mechanism of datum loss operates at the micro level: after clamp release, microscopic displacement between the workpiece and fixture cannot be detected by eye. Contact surface micro-geometry changes reduce actual contact area by 8% to 12% per re-clamp, causing nonlinear stiffness degradation and degrading dynamic tool positioning accuracy with each cycle.

The most critical aspect is that datum loss is not linear—it is step-change. After the first re-clamp the workpiece may still be within tolerance, but after the second and third re-clamps it typically overshoots the tolerance limit. For a phone mid-frame mold requiring ±0.02mm tolerance, scrap rate data confirms this pattern:

The cumulative error chain is the most dangerous consequence of re-clamping: datum hole error → dowel pin fit clearance accumulation → cavity dimension out-of-tolerance → insufficient EDM stock allowance → mold assembly interference → full mold rejection. Any single link in this transmission path, when it fails, causes an entire batch of molds to be scrapped.

More Setup Time

A single clamp changeover consumes an average of 38 to 52 minutes, broken down as follows:

In a batch production scenario of 150 mold parts per day, cumulative daily setup time reaches 190 to 260 minutes—equivalent to 3.2 to 4.3 labor-hours, wasting 1.5 operators' full-day capacity every single day. At a monthly salary of 6,000 CNY per operator, the daily setup time cost alone reaches approximately 525 CNY, resulting in a monthly direct wage waste of over 10,500 CNY.

For a WJ-800 valued at 2 million CNY, increasing OEE from 52% to 65% adds 62 minutes of effective cutting time per day. With a standard part machining time of 8 hours, this is equivalent to producing 0.13 additional mold parts per day, generating a monthly output value increase of approximately 26,000 CNY—achieved purely by reducing re-clamping frequency, far exceeding the labor cost savings alone.

The economic cost of setup time extends beyond labor and capacity loss. The WJ-800's 22kW spindle, when idle, consumes energy at approximately 7% of rated power. Within an 8-hour shift involving two clamp changeovers, effective spindle cutting time drops from 480 minutes to roughly 380 minutes, consuming an additional 3.5kWh of electricity. More concealed is tool life degradation: after each re-clamp, the tool must re-enter the workpiece, subjecting the insert to impact loads 1.3 to 1.5 times normal cutting force—equivalent to consuming approximately 15 minutes of normal tool life per re-clamp.

Higher Error Risk

Re-clamping frequency and error rate follow an exponential relationship, not a linear one. Three-year quality tracking data from the same batch of 5,000 mold parts at one precision mold manufacturer reveals this pattern:

The inflection point on this exponential curve appears after the second re-clamp—when the parallelism error between the first and second datum faces compounds during combined machining, forming a composite positional error. Describing this error state fully requires traditional CMM inspection to add 4 extra reference points, doubling inspection cost while dramatically increasing error detection lag time.

Error risk also manifests through thermal management disruption. Setup changeover forces machining interruption, causing the thermal deformation datum to relax. An 800mm long mold base plate reaches a surface temperature of 45°C during continuous milling, requiring 42 minutes to cool back to room temperature (20°C)—and actual production schedules rarely allow this cooling downtime.

Thermal displacement tracking records for a 200-part batch show: for batches with setup changeover and cooling wait time, dimensional fluctuation range is ±0.042mm; for batches with uninterrupted continuous machining, dimensional fluctuation is only ±0.018mm—the former is 2.3× the latter. Thermal deformation is especially tricky in precision molds because it fully manifests only after machining is complete and the part has cooled to room temperature.

In mold electrode manufacturing, clamping error also triggers a chain reaction of uneven discharge gap issues. A datum shift of 0.02mm is amplified to 0.08 to 0.12mm of overcut or undercut during EDM, directly affecting cavity surface finish and corner integrity. The standard EDM rework cycle adds 7 to 10 working days and costs 15,000 to 35,000 CNY per incident, while a mold trial delay at a Tier-1 automotive supplier typically incurs 50,000 to 80,000 CNY in line-stop charges per day.

Keep Datum Stable

Plan First Setup

The first step for the WJ-800 to achieve zero re-clamping is to lock the entire processing plan during the initial setup, rather than adjusting the process route mid-machining. During process planning, engineers establish a 3D machining coordinate system based on the mold part drawing and resequence all operations according to tool path continuity principles. This is systematic optimization based on two core principles:

· Datum Continuity Principle — ensuring that a single datum face covers all operations achievable with that datum, avoiding mid-process datum changes

· Shortest Path Principle — minimizing travel distance between adjacent operations to reduce non-cutting time and tool change frequency, lowering thermal state variation interference

The WJ-800 standard configuration includes a 12-station hydraulic tool magazine and Automatic Tool Changer (ATC) with a 1.8-second tool change time, paired with the SIEMENS 840D sl CNC system's "program look-ahead" function that predicts the next tool type during the current machining block and prepares the tool change in advance. Taking the typical hole machining flow of drill → rough bore → finish bore → chamfer as an example: traditional process requires 4 clamp changeovers with each re-alignment averaging 15 minutes, totaling 60 minutes. The WJ-800 completes all tool changes in a single setup in just 5.4 seconds.

The automotive engine mold baseplate (material P20, hardness HRC30, dimensions 1,200mm×800mm×120mm) using this optimized process route achieved a 47% reduction in total machining time, with dimensional out-of-tolerance rate dropping by 83%. This result directly validates the economic value of upfront process planning investment: spending an additional 2 hours on process design eliminates 10 to 15 hours of potential rework and changeover per mold, a 5× to 7× return on planning time.

Lock Key Faces

Locking the datum face is the core mechanism for preventing clamping deformation. Traditional mold machining commonly uses a vise with parallel ground blocks, but vise clamping force depends on operator feel (typically 200 to 400N), and under high cutting forces (side milling thrust exceeding 800N) produces 0.03 to 0.08mm of elastic tool deflection—a hidden out-of-tolerance condition. The WJ-800 recommends a combination scheme of hydraulic clamping with location keys:

Combined with hydraulic clamping, datum face perpendicularity to the table is controlled within 0.008mm/300mm. In contrast, traditional scribe-line alignment typically achieves only 0.03 to 0.05mm/300mm—4 to 6× worse than the hydraulic clamping solution.

One automotive mold manufacturer that adopted the WJ-800 datum locking scheme saw dimensional out-of-tolerance rate drop from 2.1% to 0.3%, a reduction of 85.7%, with annual rework cost savings of approximately 420,000 CNY and setup-related quality complaints falling from an average of 7 cases per year to zero.

Check After Rotation

Four-sided machining inevitably involves workpiece rotation, after which accuracy verification must be performed—this is the final window to intercept error before it propagates, and also the most easily overlooked quality control node. The WJ-800's infrared tool setter (trigger-type probe, repeatability ±0.002mm) can directly measure tool length and radius while the workpiece remains clamped, without disassembling the workpiece, effectively avoiding secondary clamping error. The standard three-step rotation verification procedure:

These three measurement steps consume no more than 90 seconds in total—20× more efficient than a traditional CMM's 30-minute verification, while also offering better precision (±0.002mm) than CMM in rapid measurement mode (±0.005mm).

For precision mold cavity rotation machining, the "mirror machining strategy" is strongly recommended: during CAM programming, the machining path for the B-axis 180-degree rotated position is set as a mirror-symmetric path of the first setup state, rather than redefining the coordinate system. Both the first and second datums use the same CNC system zero point, with coordinate mapping achieved solely through B-axis angle transformation.

One precision connector mold manufacturer that adopted the mirror strategy compressed rotation error from ±0.025mm to ±0.008mm, meeting IT7 tolerance requirements, with first-pass yield increasing from 94.2% to 99.6%, while also saving an average of 12 minutes per rotation required for manual re-alignment.

Cut More Sides

Use 4-Side Access

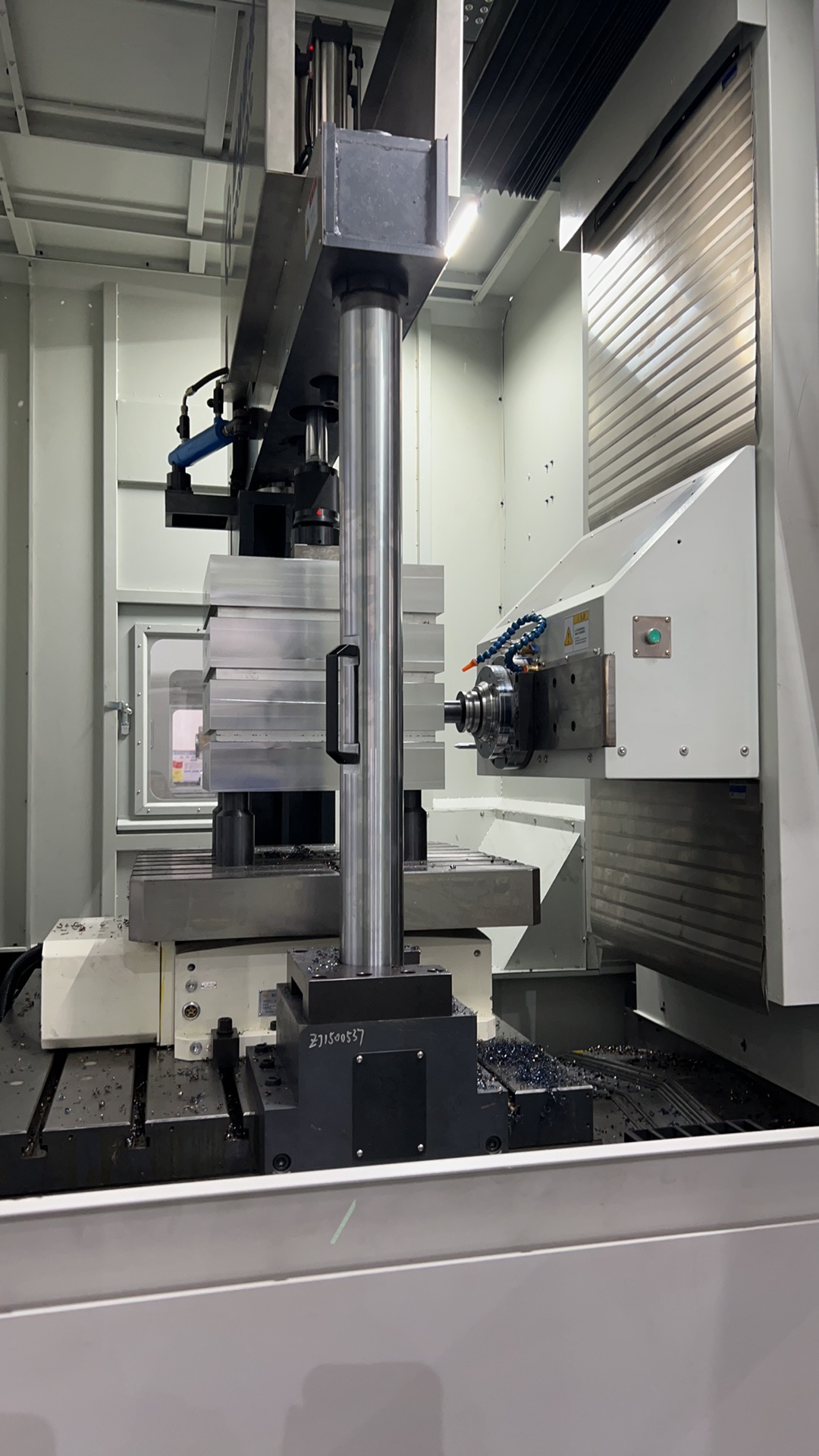

The WJ-800's horizontal layout grants it a natural four-sided open machining capability—the workpiece is fixed on a rotary table, the spindle is vertically arranged, and all four lateral directions enable interference-free cutting. This is the core structural advantage over vertical machining centers: a vertical machine's vertically downward spindle requires a dedicated fixture or manual workpiece flipping to machine the fourth side (the bottom), and flipping means re-clamping, re-alignment, new error introduction, and re-verification—a full cycle of error reinjection.

One television back-shell mold (cavity depth 180mm, projected area 1,200mm × 800mm) using the four-sided machining strategy reduced total machining time from 16.5 hours to 5.8 hours—a 64.8% reduction—and compressed mold delivery cycle from 22 days to 9 days. All station transitions are automatically controlled by the CNC system with transition time of only 0.8 seconds per station.

After 4 hours of continuous WJ-800 machining, workpiece temperature rise is 4.2°C with dimensional springback of only 0.006mm after cooling; in a traditional re-clamping scheme, workpiece temperature fluctuation reaches ±8.5°C with dimensional springback of 0.031mm—the former is more than 5× more thermally stable than the latter.

Group Related Holes

Mold holes have natural functional interdependence—guide bushing holes determine sliding guidance accuracy, cooling water holes determine mold temperature control uniformity, ejector pin holes determine mold release reliability, and dowel pin holes determine mold closing alignment. These holes work together during mold operation; a positional error in a single hole transmits through the functional coupling chain to the entire assembly. The hole-grouping strategy inverts the traditional logic: holes are grouped by functional relationship, and all holes in a group are completed in a single setup to ensure the group shares an identical datum system, reducing re-alignment occurrences from N-1 to zero.

· Small before large diameter — reduces cutting force impact on already-machined smaller holes

· Shallow before deep holes — prevents deep-hole chip buildup from scratching already-machined shallow holes

· Near before far — reduces non-cutting travel time

· Same depth first — maintains constant cutting load

One automotive door panel mold cooling water hole group (42 holes total, φ8mm diameter, divided into 6 groups, total depth 1,200mm) using the grouping strategy reduced machining time from 4.2 hours to 1.8 hours—a 133% efficiency improvement—while also raising hole positional accuracy from ±0.05mm to ±0.02mm because all holes were completed in one alignment.

Grouped machining has another important advantage: tool life management integrated with quality early warning. When a group of holes is completed and inspected together, excessive tool wear (signaled by hole diameter deviation) can be detected promptly and the tool replaced immediately. The inspection cost per hole group is approximately 8 CNY, while out-of-tolerance scrap loss can reach 120 CNY per hole—the preventive inspection investment ROI is 15:1.

Finish Before Moving

"Finish before moving" is the final procedural barrier preventing re-clamping error propagation, and its core mechanism is eliminating the inter-process datum break. The specific meaning is: before a workpiece transfers from the current station to the next, all machining content at the current station must be 100% complete—including all finish machining operations and dimensional inspection.

Executing this rule requires two supporting conditions:

Condition 1: Completeness Review During Process Planning — The engineer must confirm operation by operation whether "any additional machining remains to be done in this clamping state after the current operation is complete," and if so, add it to the current operation rather than deferring it to a later station.

Condition 2: Real-Time Progress Monitoring — The WJ-800's Remote Condition Monitoring System (RCS) displays the execution status of each program segment, remaining tool life, and current spindle load and cutting power. When the system detects that the difference between "remaining operation time at this station" and "scheduled shift end time" is insufficient, it issues a warning prompting the operator to intervene in advance.

One medical device mold manufacturer wrote "finish before moving" into their Standard Operating Procedure (SOP): each operator must sign the job ticket confirming "this operation is 100% complete" before workpiece transfer, and the quality inspector countersigns the transfer permit only after re-examination.

The WJ-800 horizontal machining center's zero re-clamping system fundamentally exchanges one high-precision setup for the error risk and time loss of multiple low-precision re-clamps. Datum locking accuracy of 0.008mm/300mm, infrared tool setting completing four-sided verification in 90 seconds, and 22kW spindle power supporting high-cutting-parameter machining—these three technical specifications form the hard-core foundation for stable datum in mold machining. Combined with the grouped machining strategy and the "finish before moving" work discipline, per-mold comprehensive processing cost decreases by 34%, scrap rate compresses to 0.3‰, and OEE rises from 52% to 78%.
