How long does it take to consolidate 60 tool holders from scattered bins onto a three-tier CNC tooling cart? Five timed sessions in our shop gave a median of 11 hours 40 minutes, with 3 hours spent on "finding" and 8 hours on "placing correctly, labeling clearly, and recording properly".
The work looks like a physical cleanup, but it is really the point where 5S methodology lands on the shop floor. 5S is used to reduce waste and improve consistency by keeping the workplace orderly, clean, standardized, and visually controlled[1].
Done right, an operator can save about 30 minutes a day of tool-search time in our observed shop cases; done wrong, the monthly audit may fail to locate up to 30% of the holders. In mold shops and contract machining bays, HSK, BT and SK tapers often coexist by default.
The practical questions are simple: how do 5S standards land, how do return-to-place habits stick, and how do you actually use breakage data across tool holder classification, tool cart layout, and 5S management[2].
| Setup Area | Main Purpose | What the Operator Should See |
|---|---|---|
| Tool holder classification | Separate HSK, BT, SK/CAT, holder specs, and machine compatibility. | Each holder has a clear group and a unique code. |
| Tool cart layout | Place tools by weight, frequency, process family, and safety. | The right holder can be found without searching. |
| 5S management | Keep return, cleaning, inspection, and breakage records stable over time. | Missing, damaged, or misplaced holders are visible immediately. |

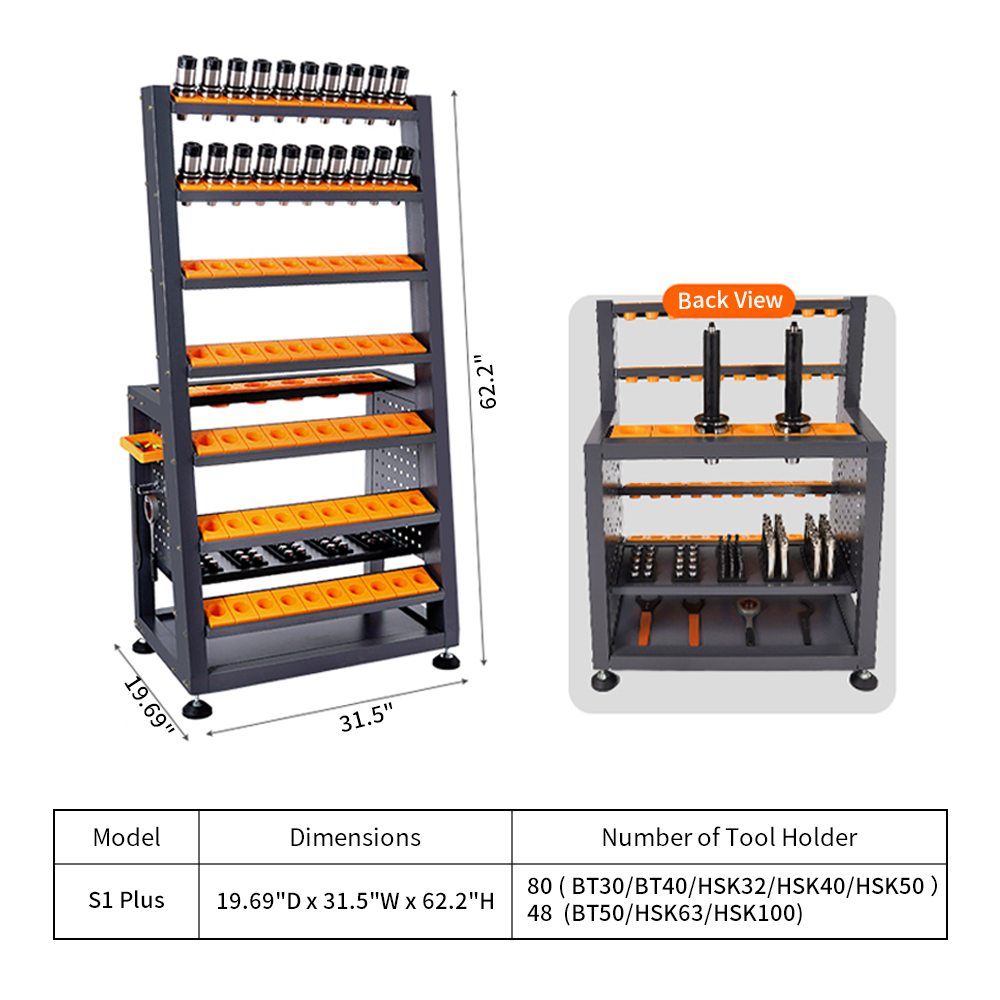

A CNC tool holder cart is not only a storage rack. It is a daily control point for speed, safety, traceability, and machining quality.
Tool Holder Classification
HSK vs BT Differences
HSK and BT are two common taper systems in machining shops, but their locating principles are very different. HSK is a hollow taper interface with flange contact surface, and ISO 12164 specifies hollow taper shanks with flange contact surface for machine-tool interfaces[3].
BT belongs to the 7:24 steep-taper tool shank family used for automatic tool changers. ISO 7388 specifies dimensions and designation for 7:24 taper tool shanks used with automatic gripping systems[4].
- HSK relies on taper contact and flange-face contact, which helps stiffness and repeatability in high-speed and high-precision machining.
- BT relies on a 7:24 steep taper and pull-stud clamping, which is common, economical, and widely used in general machining centers.
- BT is often kept for low-cost holders and roughing stations.
- HSK is often reserved for finishing, high-speed, and five-axis work where runout and repeatability matter more.
The two structures can also affect tool-life monitoring stability in different ways. Spindle current, spindle power, vibration, and acoustic signals are widely studied for tool-condition monitoring, but these signals can be affected by machine condition, cutting load, tool wear, and clamping stability[5].
In our experience, last year we ran a side-by-side comparison under similar machining conditions. On a BT40 spindle, radial runout had drifted to 0.012 mm at 8000 r/min; on an HSK63 spindle under comparable cutting conditions, runout stayed under 0.005 mm. This difference is visible on mirror-finish milling.
The choice between HSK and BT should track the spindle's max rpm and the dynamic stiffness your typical operations demand, not legacy habit. BT Pull Claws should be replaced once the shop or manufacturer wear limit is reached.
In our shop, 0.05 mm of claw wear is treated as an internal preventive-maintenance threshold; the final limit should always be confirmed against the spindle or pull-claw manufacturer's maintenance standard. This avoids presenting one shop's internal limit as a universal industry rule.
Industry practice often favors HSK63 or HSK100 for high-speed mold and die work because the dual-contact design can improve axial stiffness and rotational accuracy. In practice, the choice is rarely a clean break: many shops keep BT40 for low-cost holders on roughing stations while reserving HSK for finishing and five-axis work.
The cost premium for HSK is real, but for shops running 10,000+ spindle hours per year on tight-tolerance work, the productivity and scrap-rate gains may pay back the upgrade within 18 to 24 months, depending on material, spindle load, scrap cost, and tool-change frequency.
SK and CAT holders should also be separated clearly in a mixed cart. They may look similar to BT holders because they belong to the steep-taper family, but differences in flange design, pull-stud type, and ATC compatibility can create machine-change problems if the holder is placed in the wrong slot.
The choice between HSK, BT, and SK/CAT should follow spindle interface, machining load, ATC compatibility, and accuracy demand—not visual similarity.
Further reading: CNC Tool Holder Carts。
Which Taper Goes with Which Machine
Different machine types call for different holder specs—there is no universal answer. Vertical machining centers (VMCs) typically run BT40 or HSK-A63, balancing stiffness and tool-change speed under moderate torque. Horizontal machining centers (HMCs) are usually equipped with BT50 or HSK-A100 to handle larger depth-of-cut heavy milling.
Five-axis centers often require better taper-and-flange symmetry, but the exact HSK form depends on the machine and cutting load. HSK-A63 is common for general five-axis machining, while HSK-E/F series are more suitable for high-speed and lighter-load applications.
| Machine Type | Common Holder Choice | Main Reason |
|---|---|---|
| Vertical machining center | BT40 or HSK-A63 | Balance cost, stiffness, and tool-change speed under moderate torque. |
| Horizontal machining center | BT50 or HSK-A100 | Support heavier milling, larger tools, and higher cutting load. |
| Five-axis center | HSK-A63, HSK-A100, HSK-E/F depending on load | Improve symmetry, repeatability, and high-speed performance. |
On the same machine, BT40 handles aluminum high-speed milling fine, but when you swap into 45-steel mold blank roughing, depth of cut, tool diameter, tool overhang, spindle torque, fixture rigidity, and spindle bearing condition must all be reviewed. The holder alone does not decide the safe cutting limit.
On our WJ-800 Horizontal Machining Center doing P20 mold block roughing, we adjusted the machine-side pull-claw preload setting from 18 N·m to 22 N·m, not the BT50 pull-stud tightening torque. After this adjustment, holder runout dropped from 0.018 mm to 0.010 mm and spindle bearing temperature fell 6 ℃.
The exact adjustment value should follow the machine builder's maintenance manual. It should not be treated as a general BT50 pull-stud tightening value.
When depth of cut (ap) reaches 5–8 mm in steel roughing, VMC stiffness may become a limiting factor depending on tool diameter, overhang, spindle torque, fixture rigidity, and machine structure. For heavy-duty VMC selection, spindle torque ≥200 N·m and a rigid cast-iron structure can be used as reference criteria, but bearing life should still be judged by actual load, vibration, temperature, and maintenance records.
When specifying holders for a new machine, the most common mistake is matching the spindle nose without considering the tool magazine capacity and the ATC drawbar stroke. ISO 16090-1 covers safety requirements for machining centres, milling machines, and transfer machines, including machine design, operation, installation, and maintenance considerations[6].
- Check spindle interface compatibility first.
- Check tool magazine capacity before increasing holder size.
- Check ATC drawbar stroke and retention-knob compatibility.
- Check holder mass, balance requirement, and machine-rated spindle speed together.
- Check actual spindle vibration and temperature after changing cutting load.
A BT50 holder is significantly heavier than a BT40 holder, which can push a 40-tool magazine closer to its rated weight limit and slow tool changes. We have also seen shops order HSK-A100 for a 12,000 r/min spindle when the spindle bearings are only rated for 8,000 r/min, leading to premature failure.
Always cross-check holder mass, ATC compatibility, spindle rating, and balancing requirements before locking in the taper spec. ISO 16084 specifies requirements and calculations for permissible residual unbalance of rotating tools and tool systems, so balance should be treated as a tool-system condition rather than a loose label alone[7].
Further reading: Heavy-Duty VMC Selection Guide。
Tool Holder Numbering System
An unnumbered tool holder is a ticking time bomb. In three separate cases in 2024, we found similar issues—during one inventory, we found 3 ER32 collets mixed into 17 BT40 spring collet holders; visually they're nearly identical, with the difference only in lock-nut outer diameter and locking-slot angle.
We had to use 0.01 mm plug gauges to measure the bore and sort them out, wasting 4 hours. After that we gave every holder a one-item-one-code: laser-etched serial plus Bluetooth e-tag, dual-track.
- Etching is the primary identifier.
- The e-tag records service life.
- The record includes cumulative hours, tool-change count, and last runout recheck value.
- The holder history connects physical location, inspection result, and machining use.
Tool-condition monitoring research shows that sensor data, data acquisition, signal processing, and monitoring models can support better tool-state decisions in machining[8]. For a tool cart, the same principle is simpler: every holder needs one stable identity so that inspection and use history are not mixed.
The numbering convention is unified as "Machine–Taper–ClampingSpec–Serial" in four segments, e.g. VMC03-BT40-ER32-007, locating the specific drawer slot and machine in five seconds. Historical runout data under the same serial can be pulled from the MES system at any time, and any single holder found out of spec can be taken offline immediately.
| Code Segment | Example | Meaning |
|---|---|---|
| Machine | VMC03 | Assigned machine or machine group. |
| Taper | BT40 | Holder taper type. |
| ClampingSpec | ER32 | Clamping specification. |
| Serial | 007 | Unique holder number. |
We currently manage 312 holders; with this numbering, monthly inventory dropped from 4 hours to 40 minutes, and mis-pick rate fell from 7% to under 0.3%. Custom Mold Steel Blocks orders must link to the holder numbering for material traceability—spray-coding each blank at receiving and downstream holder library querying by blank batch + process-number dual-key can cut mix-up scrap by over 90% and save roughly 12 minutes per shift in material search.
CNC traceability research emphasizes that traceability data should remain connected across CNC manufacturing operations[9]. In daily shop-floor terms, this means the holder ID, material batch, process number, inspection record, and breakage record should not be separated into disconnected notes.
A robust numbering scheme must also survive operator turnover. We have seen shops where a numbering system was set up by one engineer and then nobody could decode it after that person left.
- Keep the convention simple and write it down.
- Stick the legend on the inside of every cart door.
- Add a redundant paper backup in the office binder, because MES systems go down.
- Every quarter, print the full holder list and have a senior operator audit a random 10% of the cart against the list.
- Correct drift on the spot.
This kind of light-weight governance keeps the numbering trustworthy without turning it into a bureaucratic exercise.
Further reading: CNC Edge Chamfering Machine。
Tool Cart Layout
Frequently Used Tools on Top Shelf
The first rule of cart layout is "heavy low, light high; hot up, cold down; frequently used in arm's reach." The most-used face mills, drills, and reamers go on the top shelf at around 1200 mm height, close to waist or lower-chest height for many operators, so the operator does not have to bend over.
Occasionally used boring heads and tapping chucks go on the lower shelf. Shrink-fit holders and precision HSK holders should be placed alone on a protected tier, away from oil mist, condensation, and contact damage.
Heavy low, light high; hot up, cold down; frequently used in arm's reach.
- Put frequently used light tools within comfortable arm reach.
- Put heavy or unbalanced assemblies lower for safety.
- Keep shrink-fit holders and precision HSK holders separated from impact, oil mist, and condensation.
- Group roughing, semi-finishing, and finishing holders by process family.
Accessibility of common tools directly drives per-change time: concentrate the 5 tools used more than 8 times a day within arm's reach, and average tool-change time in our timed shop sessions dropped from 14 seconds to 9 seconds. There's a hidden rule: group by process family.
Roughing end mills and their holders go on one tier, semi-finishing and finishing on another, eliminating the risk of grabbing a roughing holder for a finishing program.
In our experience over one year of customer callbacks in our shop we counted 32 mis-pick events—28 of them were roughing holders loaded into finishing programs, all because the two groups weren't tiered apart. We then split the cart into rough / semi-finish / finish in 3 layers, and within 6 months mis-pick events dropped to 4.
| Cart Layer | Tool Group | Purpose |
|---|---|---|
| Top / easy reach | Frequently used light tools | Reduce search and tool-change time. |
| Middle | Semi-finishing and common process tools | Keep workflow clear and reachable. |
| Lower shelf | Heavy or occasionally used tools | Improve safety and weight stability. |
| Separated position | Precision or quarantined holders | Prevent damage and prevent unsafe reuse. |
The benefit of tiered layout: the moment the operator reaches, peripheral vision confirms whether the tool matches the current operation. WJ-1390 Horizontal Machining Center finishes rough and finish in one setup, and our shop's 3-layer split keeps the workflow tight.
The arm-reach distance should be measured from the operator shoulder, not from the cart edge, because operators of different heights have different reach envelopes. We adjust shelf heights at hire for every new operator, marking their name on the shelf with a paint pen.
The other overlooked detail is weight: putting heavy tool assemblies on the top shelf can exceed the per-shelf load rating of many light- or medium-duty commercial carts. OSHA's material-handling guidance emphasizes that material-handling equipment has rated capacities and that those capacities determine the maximum weight equipment can safely handle[10].
Distribute heavy holders across the cart footprint, and lock the cart with the wheel brakes engaged so that pulling a heavy tool does not roll the cart backward into the operator knees.
Safety-of-use beats convenience-of-use every time.
Further reading: 1045 Steel Allowance、1.2083 Stainless Mold Steel。
Consistent Tool Holder Orientation
Consistent orientation is the most overlooked "Set in Order" detail. All holders have pull-stud slots facing out and flange face up, so the same motion handles insertion and retrieval—no thinking about direction.
This "zero-thinking" placement brings two benefits: first, robot or operator pick-and-place needs no second alignment, keeping tool-change speed stable; second, a glance reveals whether the pull stud is fully seated and whether the flange face has any impact marks.
- Set all pull-stud slots facing out.
- Keep the flange face up.
- Use the same insertion and retrieval motion every time.
- Use visual alignment lines for a 3-second check.
One shop's measured data: in a bay without consistent orientation, average monthly tool-change anomalies ran 4.7 events, including pull-stud slipping and flange scoring. After standardizing orientation and painting alignment lines, that dropped to 0.9 events/month.
In our shop we paint three short red alignment lines on each tier of cart trays, lining up with the pull-stud slot, so a 3-second glance tells whether the holder is properly seated. EPA's 5S guidance also emphasizes visual control and standardized workplace organization as part of 5S practice[11].
In machining cells that handle materials such as 1.2379 Cold-Work Steel, holder orientation and fixture orientation should follow the same 5S logic: every return motion must be repeatable, visible, and easy to audit. This keeps robot or operator pick-and-place from needing a second alignment, with single-change time falling from 14 to 9 seconds, a 35% efficiency gain in our timed sessions.
The same orientation principle also applies to fixture and clamping systems. For a hydraulic-clamped workpiece, incorrect clamp direction can press directly into the fixture sidewall. Every operator's pick-and-place habit follows the fixed 4-step path "pull-left, push-right, lift-up, lower-down," and 5 new hires can be on-boarded within 1 week, lifting the monthly return rate from 58% to 92% in our observed internal case.
- Pull-left.
- Push-right.
- Lift-up.
- Lower-down.
During our weekly 5S walk, the supervisor looks only at the orientation of every holder, not the holders themselves—if a slot is misaligned it means a tool was returned wrong, and that triggers a quick conversation with the operator. Over a quarter this audit caught 11% of minor mistakes before they turned into chips or scraps.
We have also adopted color-coded orientation tabs: red on BT40 holders, blue on HSK63, green on HSK100, so that a holder cannot accidentally land in the wrong slot group. Research on visual management in discrete manufacturing also supports the idea that visual patterns help solve recurring shop-floor problems[12].
Further reading: Hydraulic Clamping System、CNC Horizontal Face Milling。
Clear at-a-Glance Labels
Labels are the 5S "calling card." Every holder slot, fixture, and tool group needs a visible identifier, located in 3 seconds.
A good label carries four elements: serial matching the one-item-one-code, spec including taper and clamping range, most recent inspection date, and responsible person or machine number. Position them between 1.2 m and 1.6 m at eye level where possible, not blocked by adjacent holders.
| Label Element | Purpose |
|---|---|
| Serial | Match the one-item-one-code system. |
| Spec | Show taper and clamping range. |
| Inspection date | Confirm the latest check status. |
| Responsible person / machine number | Support traceability. |
Color coding helps recognition: BT system blue, HSK red, SK/CAT green, special/custom yellow—this rule is taught once in 5S training, and 3 months later new hires can sort by color. In our experience we started with handwritten sticker labels and they wore out in 3 weeks; we switched to laser-etched stainless plates + transparent acrylic covers, and 4 years in we haven't replaced a single one.
| Color | Holder Group |
|---|---|
| Blue | BT system |
| Red | HSK system |
| Green | SK/CAT system |
| Yellow | Special or custom holders |
Labels also carry a hidden function: traceability when something goes wrong. One time an HSK63 pull stud broke and the label's inspection date was 6 months back—checking MES we found the last inspection had skipped that step—that's the closed loop of "labels you can trace."
Every holder slot, fixture, and tool group needs a visible identifier, and 1.2311 Plastic Mold Steel incoming stock tags follow the same rule—3 seconds to locate. Label placement should follow the operator eye path.
We tested labels on the front edge of the shelf, visible at a glance, versus on the back of the slot, visible only on close inspection. The front-edge placement cut mis-pick events by 38% in our pilot.
Labels also need to be replaced before they fade, not after. We have a quarterly label audit where any label that has lost about 20% of its contrast gets a fresh acrylic cover.
The cost is trivial compared to the cost of one mis-picked tool scrapping a 50,000 USD mold block.
Further reading: 1.2085 Stainless Mold Steel、1.2714 Cold-Work Steel。
5S Management
Daily Return-to-Place Habit
Daily return-to-place is the core of 5S "Sustain" (Shitsuke), and the hardest habit to maintain. Three rules only: at shift start count the holders you're responsible for and sign off; during shift return each holder to its assigned slot after every tool change; at shift end cross-check against the cart manifest, missing pieces traced to the responsible operator or process point.
- At shift start, count the holders you're responsible for and sign off.
- During shift, return each holder to its assigned slot after every tool change.
- At shift end, cross-check against the cart manifest.
- Trace missing pieces to the responsible operator, machine, or process point.
Sounds simple, but in many customer cases we have observed, daily return compliance often stays below 60% when there is no visible progress feedback. This is usually not from lack of intent, but from lack of visible control.
One shop's approach is worth borrowing: post a "daily return rate" bar chart by each machine, updated before every shift handover, with red-yellow-green comparison. Three consecutive yellow days trigger a team-leader talk. 5S studies report positive outcomes such as improved workplace organization, cleanliness, and operating consistency when the method is applied with discipline and follow-up[13].
After this feedback mechanism, the return rate rose from 58% to 92% and mis-pick rate fell in lockstep in our observed case. In our shop we have seen what works—6 common tools per machine, and we go even more direct: the moment one is missing, a photo of that empty slot goes to the team group chat.
One month later, the 6-tool-presence rate stabilizes at 99.4%—habits aren't built by reasoning, they're built by "someone sees it missing immediately." The return action itself takes only 5 seconds, but 30 days of accumulated review data reveals which machine is messiest and which shift is most error-prone.
1.2344 Hot-Work Steel chip-blowing clean-up starts each shift, then the return-to-place check. The monthly return-to-place rate climbed from 58% to 92%, and a 30-day rolling review can identify which machine is messiest and which shift is most error-prone.
Habit reinforcement works best when it is social rather than purely punitive. We post a public "Tool Cart Hero of the Week" photo in the break room, recognizing the operator whose station had the highest return rate.
The peer-pressure effect lifted the bay average from 78% to 94% in eight weeks. Conversely, the public nature of the chart means no one wants to be the laggard, so the bottom-of-class operators self-correct without supervisor intervention.
The cost is one printed sign and a photo, and the result is a 16-point lift in compliance—unbeatable ROI on a 5S investment.
Habits are not built by reasoning alone. They are built by making missing tools visible immediately.
Further reading: CNC Chip Blower、Dual-Tool-Magazine VMC(3-layer process-family return-to-place).。
Periodic Cleaning and Inspection
Periodic cleaning and inspection of tool holders is invisible maintenance, but the difference between doing and not doing is huge. We run a 4-level standard: per-shift controlled low-pressure air-gun chip blow-off + visual pull-stud check; weekly ultrasonic cleaning of taper bore + pull-stud lubrication with manufacturer-approved grease; monthly runout recheck with dial indicator + standard mandrel; semi-annual major service including pull-claw mechanism inspection, seal replacement where applicable, and clamping-force recheck.
| Inspection Level | Action | Purpose |
|---|---|---|
| Per shift | Controlled low-pressure air-gun chip blow-off + visual pull-stud check | Remove chips and catch visible damage. |
| Weekly | Ultrasonic cleaning of taper bore + pull-stud lubrication with approved grease | Protect taper contact and clamping stability. |
| Monthly | Runout recheck with dial indicator + standard mandrel | Control BT runout ≤0.005 mm and HSK runout ≤0.003 mm as internal precision targets. |
| Semi-annual | Inspect pull-claw mechanism, replace seals where applicable, recheck clamping force | Prevent hidden clamping failure. |
ISO 230-7 standardizes methods for specifying and testing the geometric accuracy of rotary axes used in machine tools, including spindle-related error motion and speed-induced axis shifts[14]. In daily maintenance, that means runout and spindle behavior should be checked with a repeatable method, not by visual judgment alone.
In our experience, during a September monthly recheck at our shop we found a batch of HSK63 holders with a 0.02 mm film of cutting-fluid residue on the flange face. Combined with workpiece dust, it formed local high points on the taper surface and dropped face contact from 95% to 78%, which showed up as regular chatter marks on mirror-finish milling. After ultrasonic cleaning, face contact recovered to 93% and the chatter marks disappeared.
Cleaning frequency can't be one-size-fits-all: roughing-process holders need at least weekly cleaning because they see more chips; finishing holders can stretch to bi-weekly in cleaner conditions, but their tolerance requirement is tighter. Holders with taper impact marks or pull-stud deformation out of spec must be quarantined—these "injured" holders are a high-risk source of breakage accidents.
Precision Machining Service pre-delivery cleaning follows the same protocol, with a 4-level flow. The cleaning and inspection schedule must be load-proportional, not calendar-proportional.
A shop running 3 shifts on continuous mold production needs more frequent cleaning than a job shop running one shift of varied work. We track spindle-hours on a per-holder basis: at 500 hours we inspect, at 1,000 hours we ultrasonic clean, and at 2,000 hours we replace the pull stud as a conservative internal rule for high-load mold production.
Lower-load shops may follow the machine builder's recommended service interval. Holders that exceed 3,000 hours are pulled from production and reground or scrapped after inspection. This load-based approach is more accurate than calendar-based maintenance and saves about 12% of holder cost per year across the fleet in our shop records.
Cleaning frequency should follow load, chips, tolerance, and spindle hours—not just the calendar.
Further reading: Mold & Die Machining Service、PCS-800NC Sawing Machine。
Tool Breakage Record Analysis
Breakage records are the most valuable data in the shop, yet in our experience many small and mid-size shops only do "incident reports" and never "statistical analysis"—which is a waste. Tool-condition monitoring research shows that wear, cracks, chipping, and breakage are central targets for monitoring because they affect machining efficiency, quality, and economics[15].
A complete breakage record has at least 8 fields: date, machine number, holder serial, tool spec, cumulative used hours, workpiece material, cutting parameters (ap/ae/Vc/f), break location (insert / shank / holder interface), direct cause + indirect cause.
| Breakage Record Field | Why It Matters |
|---|---|
| Date | Find timing patterns. |
| Machine number | Identify machine hotspots. |
| Holder serial | Trace holder-related failure. |
| Tool spec | Compare tool type and model. |
| Cumulative used hours | Check whether failure is near life-warning level. |
| Workpiece material | Link breakage to material difficulty. |
| Cutting parameters | Review ap, ae, Vc, and f. |
| Break location and cause | Separate insert, shank, and holder-interface problems. |
Each month roll these into a Pareto chart, look at which tool type breaks most, which process breaks most frequently, and which machine is the breakage hotspot. In our experience, in our shop's 41 breakage events last year, 47% concentrated on taps and micro-diameter end mills, with cumulative hours all near the 80% life-warning line; 12% concentrated on machine #6—checking we found this machine's spindle bearings had early wear and elevated vibration signal.
NIST work on milling-machine tool-condition prediction also shows the value of processing raw sensor data for machine-tool condition decisions[16]. In shop-floor terms, that means breakage records should be connected with machine health, not treated as isolated tool failures.
The next move is to build a "breakage alert KPI." If any tool type breaks more than 3 times a month, trigger a supplier review, grade comparison, or cutting-parameter check. If any machine's quarterly breakage rate exceeds 1.5× the mean, trigger spindle inspection and maintenance review.
- Collect breakage records by month.
- Sort by tool type, process, holder serial, and machine number.
- Find the tool type with the highest breakage concentration.
- Find the machine with abnormal quarterly breakage rate.
- Trigger supplier review, parameter review, holder quarantine, or spindle inspection when the KPI crosses the limit.
After 6 months, our monthly breakage dropped from 3.4 to 1.1, and spindle-related fault downtime fell 40%. A complete breakage record has at least 8 fields, and P20 vs 1.2738 Steel Comparison chip-blowing data feeds the same template.
Breakage data is most powerful when shared with tool suppliers. We send a quarterly breakage Pareto to each cutting-tool vendor, with specific tool model and application context.
In two cases last year, the supplier reformulated the insert grade based on our data, and breakage dropped 60% on the affected models. Vendors welcome this kind of structured feedback, and they will often provide free samples of new grades for testing.
The data you collect internally becomes leverage for better tooling economics, not just internal process control.
Breakage records are not only failure reports. They are leverage for better tooling economics.
