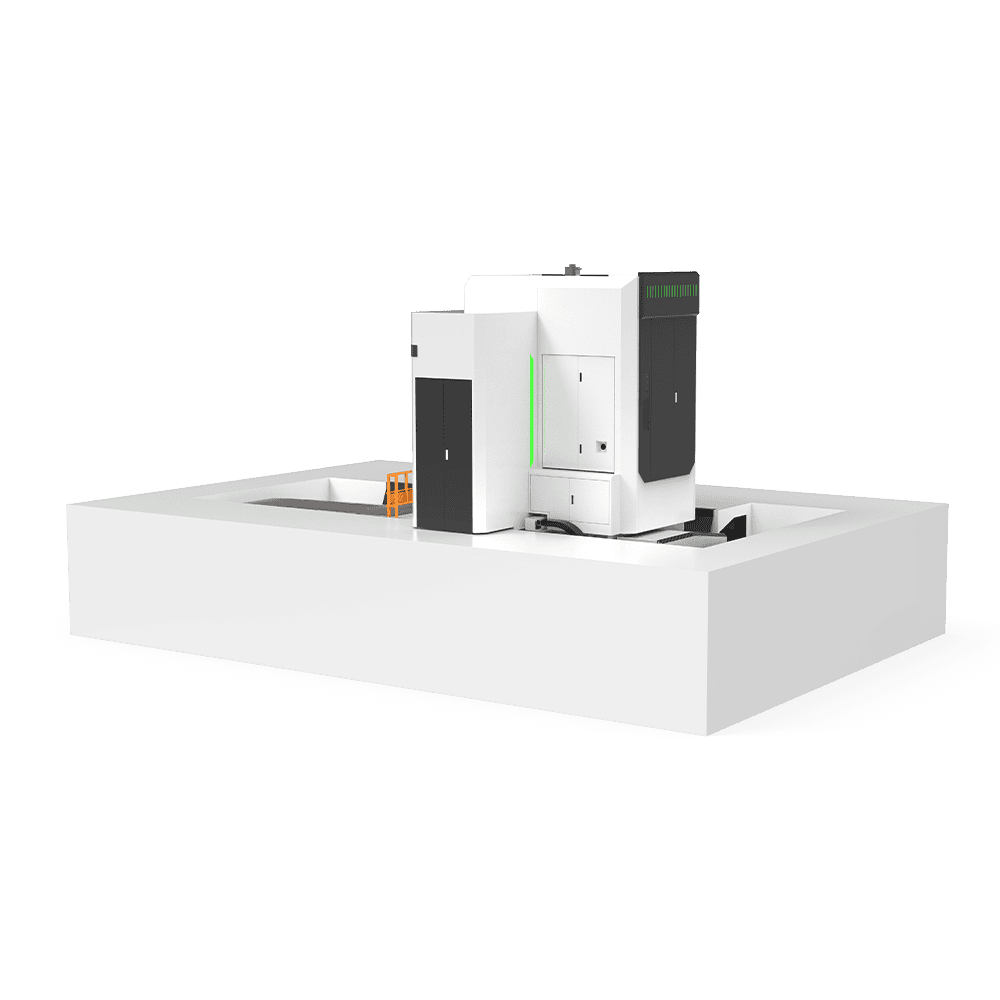

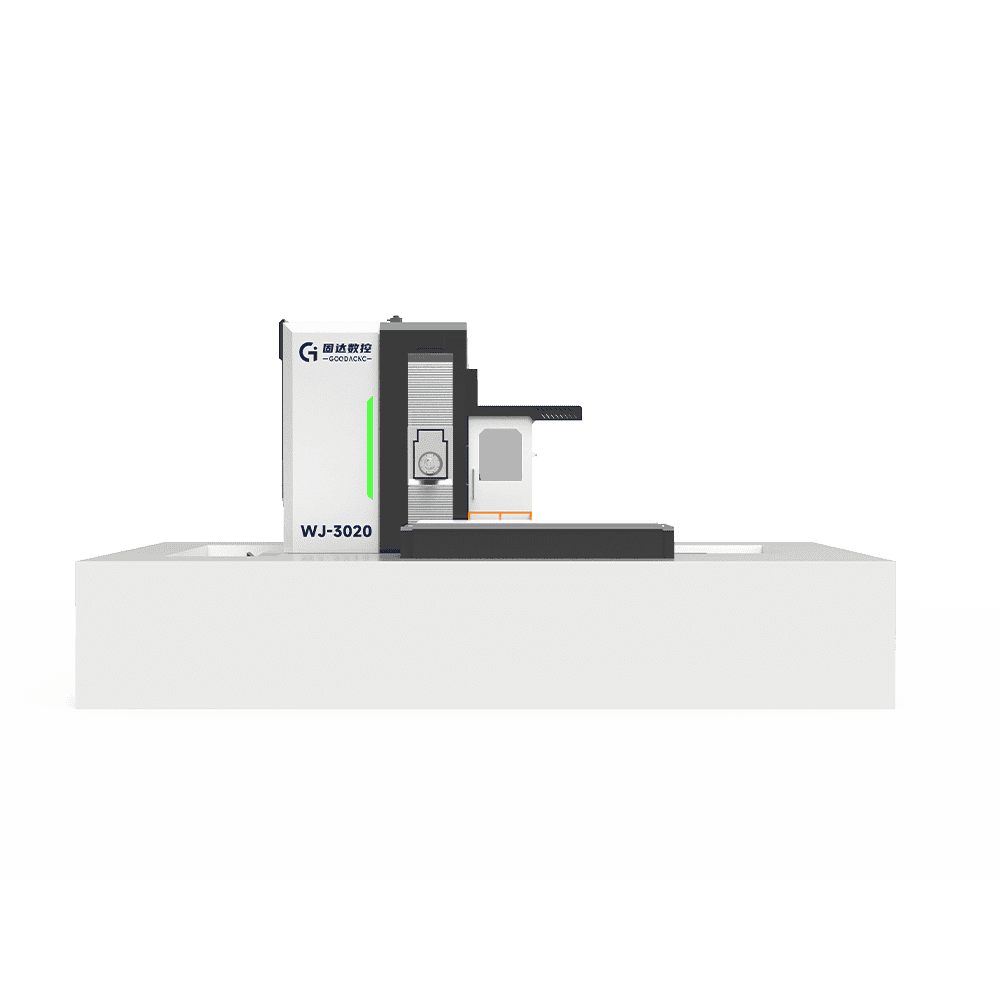

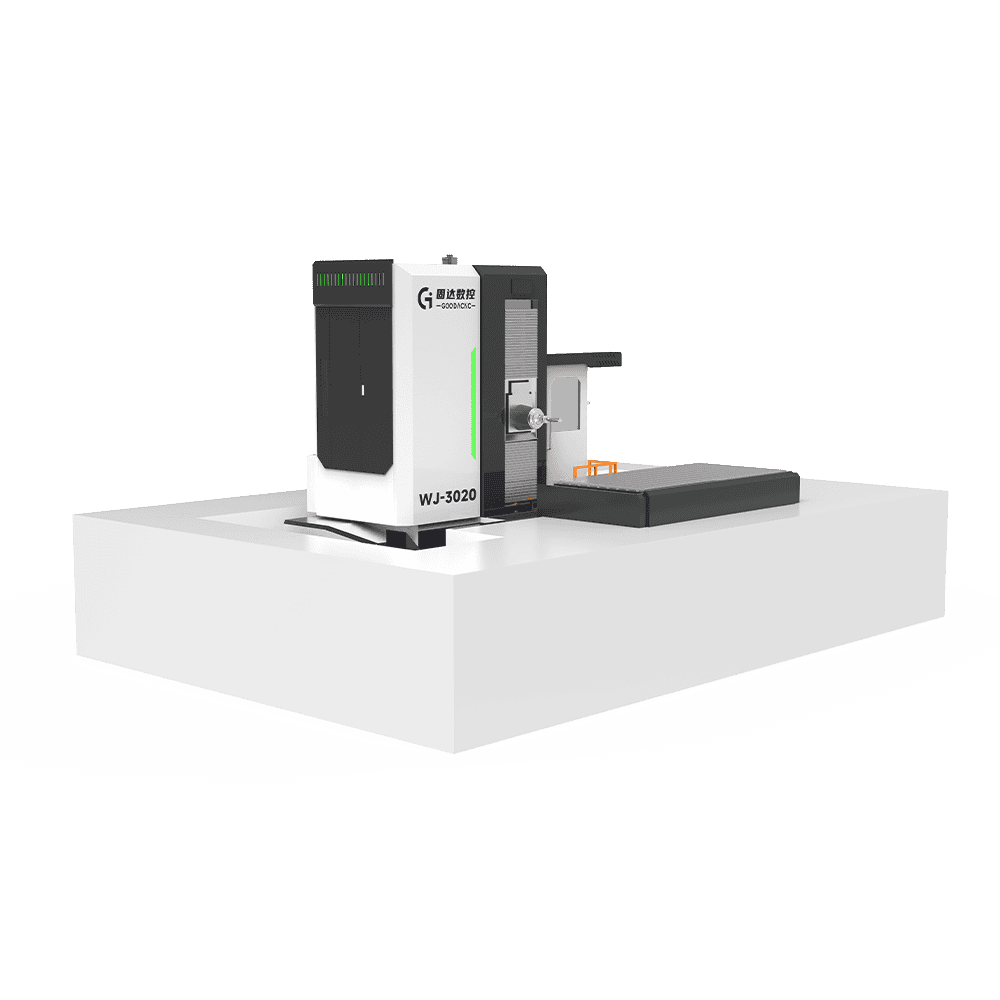

Horizontal Machining Center

The machine tool adopts a floor-type structure with an X-axis moving column, surrounded by guideways on three sides. It's an ideal tool for heavy cutting and heavy loading. The standard configuration includes a 22KW motor with high torque and high speed. The Z-axis square ram can extend up to 850mm, which is suitable for roughing in industries such as construction machinery, shipbuilding, aerospace, automobile, wind power, machine tools, automobile molds, and household appliance molds.

Max. X-axis travel 3000mm
Max. Y-axis travel 2500mm
Max. Z-axis travel 850mm
Max. load capacity 35000KG

Control & software alternatives

HIGHLIGHTS SPECIFICATIONS SAMPLE APPLICATIONS CONTROL & SOFTWARE SERVICE & TRAINING

Contact

Horizontal Machining Center

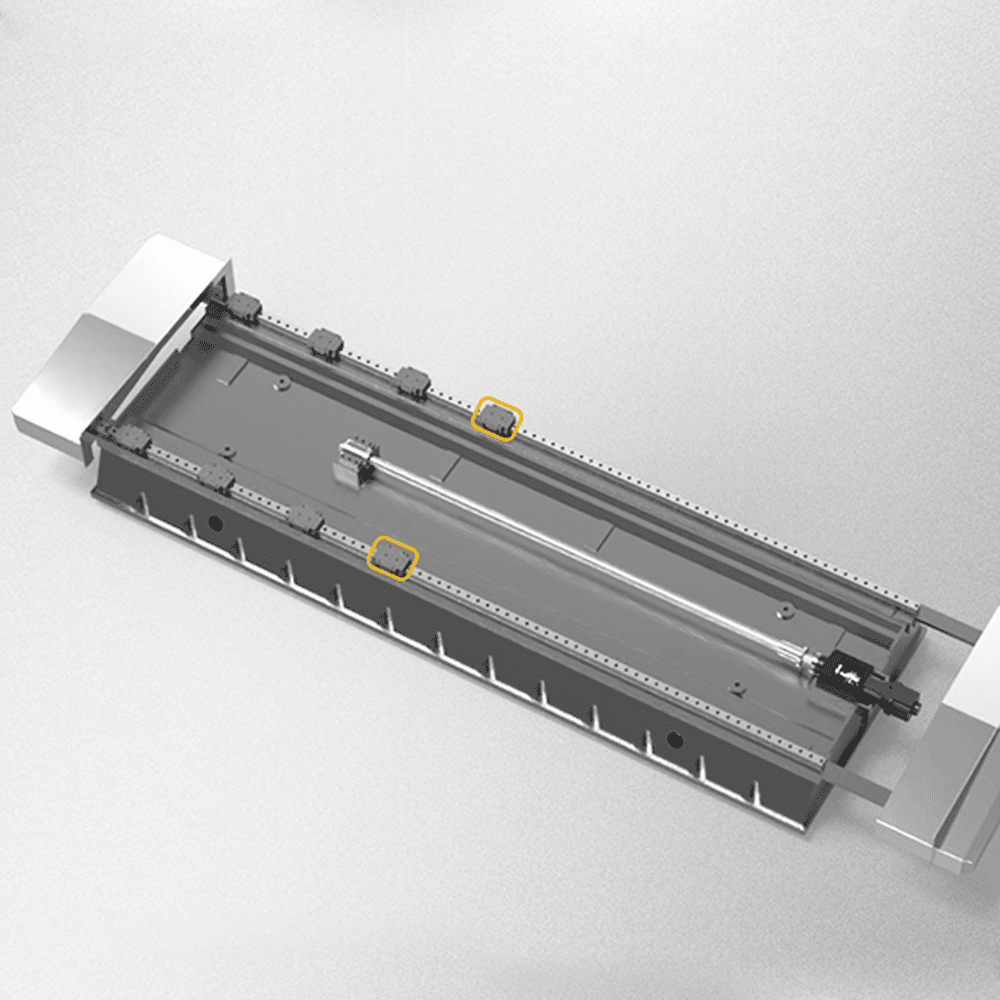

Machine base

The X-axis guide rail adopts a heavy-duty guide rail with a span of 1463mm, and the overall base casting has a large span to ensure the stability of heavy cutting and heavy-load processing.

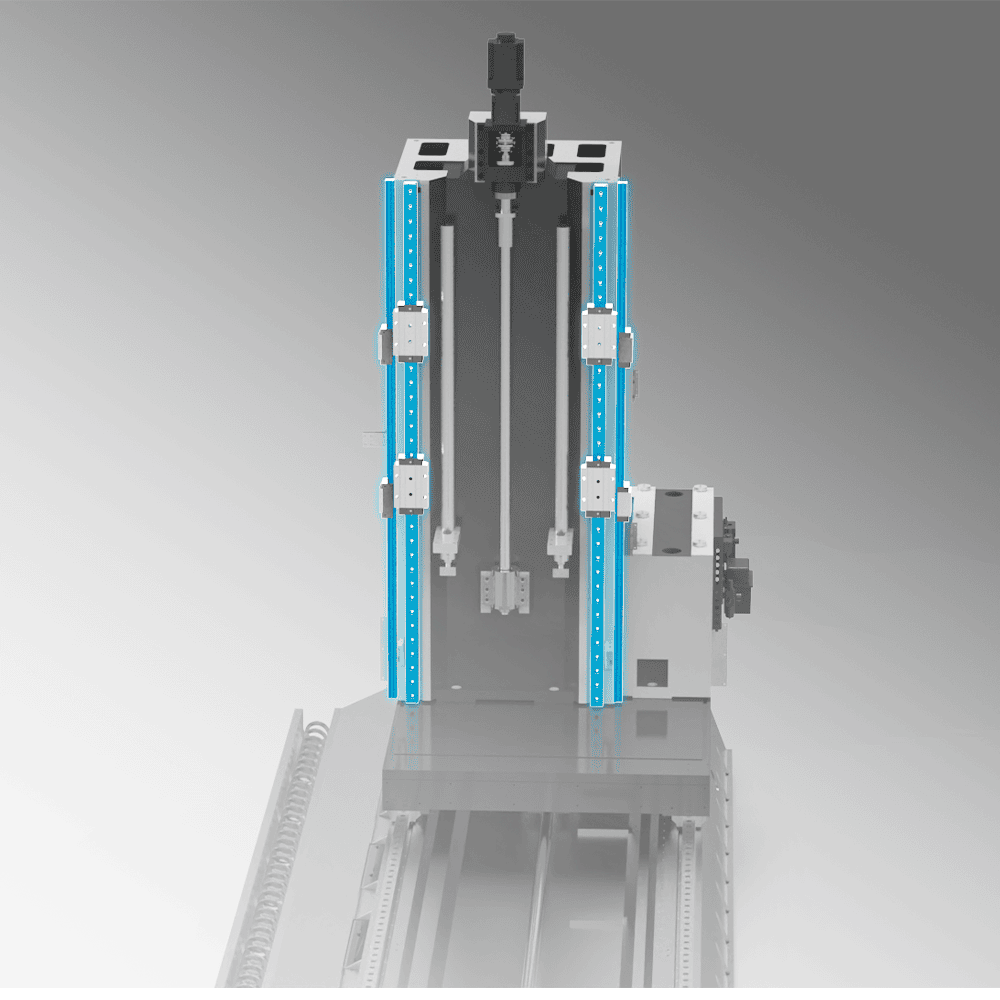

Column

The Y-axis guide rail is designed with guide rails on the front and rear sides of the column, forming a three-sided guide rail structure with strong stability.
Head

The Z-axis guide rail is a hard rail surrounded by an integral square box, ensuring small smooth movement of the transmission components during heavy cutting and efficient operation for a long time.

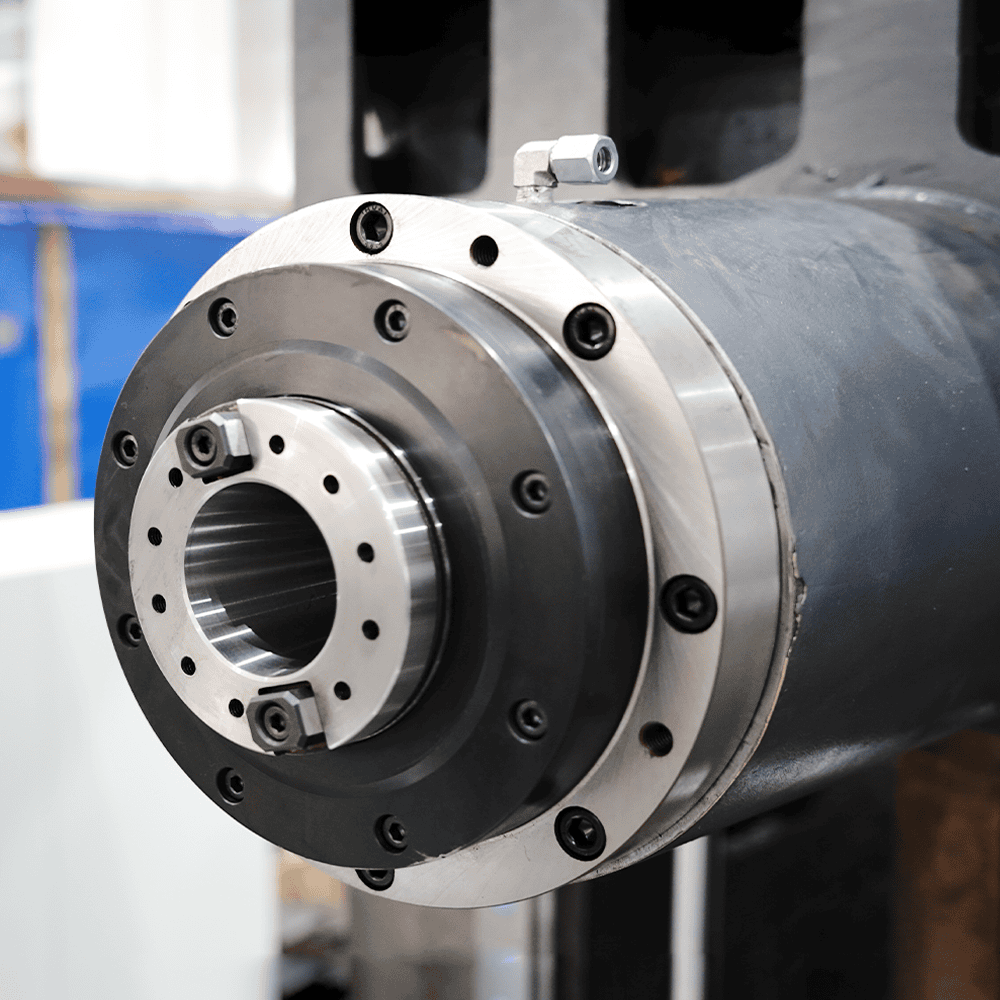

Spindle unit

The spindle adopts imported large-diameter angular contact bearings, which can withstand high-torque cutting force during heavy cutting. The frequency analysis of the spindle box has been carried out by ANSYS software, and the vibration of the machine has been reduced at the design. A large torque of 22KW is adopted.

Basic Info

Ltems		Value	Unit
Worktable	Worktable size	3200×2000(Customizable)	mm
	Max.load capacity	35	T
	T-slot size specs	11-22×220	mm
Travel	X axis travel	3000(optional 4000/5000/6000)	mm
	Yaxis travel	2500	mm
	Z axis travel	850	mm
	Ram size	450×500	mm
Spindle	Spindle taper	BT50/φ220
	Spindle motor power	MK:30/37(optional 22/26)	kW
	Max.spindle speed	3000(6000)	rpm
Feed	X/Y/Z axis rapid move speed	10/10/10	m/min
Tool magazine	Tool capacity	24T(or 40T)	T
Accuracy Others	Positioning accuracy	0.02/1000	mm
	Repositioning accuracy	0.015/1000	mm
	Total power required	60	KVA
	Machine size	9.0×6.5×4.5	m
	Machine weight(approx.)	36000	kg

Sample Applications

Contact us for more information on our Custom Made Machine Tools Solutions for complex workpieces. When you need high rigidity, efficiency and powerful machines,Asiatools Machinery gets you going!

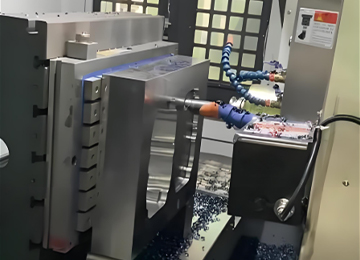

Hanger hole

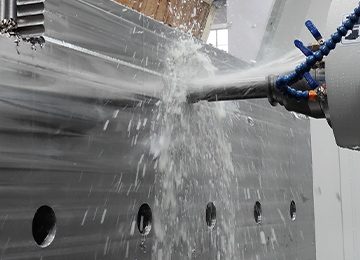

Mold pocket machining

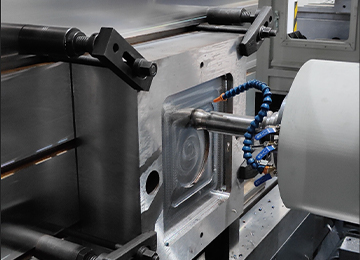

Mold frame machining

Control & Software

To meet your different processing needs, we provide three widely used systems on the market for you to choose.

FANUC CONTROLLER

Fanuc oi-MF Plus 10.4'' Touch screen control panel Fanuc oi-MF Plus 10.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

MITSUBISHI CONTROLLER

Mitsubishi-M80 series 10.4''Touch screen control panel Mitsubishi-E80 series 8.4'' keyboard control panel. The simple and functional panel, the comfortable operational functional keyboard panel. User-friendly interface and Easy conversational operating program.

CHINA CONTROLLER

JK 15'' Touch screen control panle. Easy operating program. Big and simple operating interface as smart phone touchscreen.

Service & Training

Worry-Free After-Sales Service

Our relationship with clients doesn't end with the sale. We offer comprehensive after-sales support that encompasses everything from expert installation services to hands-on training sessions, ensuring your team is fully equipped to operate and maintain our machinery. Our responsive customer service and technical support are always at your disposal, providing solutions and assistance to keep your operations running smoothly
